Type 2 vs Type 4 Safety Light Curtains: Risk-Based Selection Decision Tree

Choosing between a Type 2 vs Type 4 safety light curtain is not a budget decision or a brand preference, it is the output of a formal risk assessment. Either direction costs money: over-specify and you pay for integrity you will never use; under-specify and you install a device that an OSHA inspector, an insurer, or an injury can later prove was never legally adequate. This guide replaces “pick the safer one” with the actual decision logic engineers use: the ISO 13849-1 risk graph, run step by step, mapped to the device Type that satisfies it.

Below, the four ratings that get confused (Type, Category, PL, SIL), the risk graph that actually decides the answer, the safety-distance math that determines whether your chosen Type is even doing its job, and an application-by-application map for presses, robotic cells, conveyors, and perimeters.

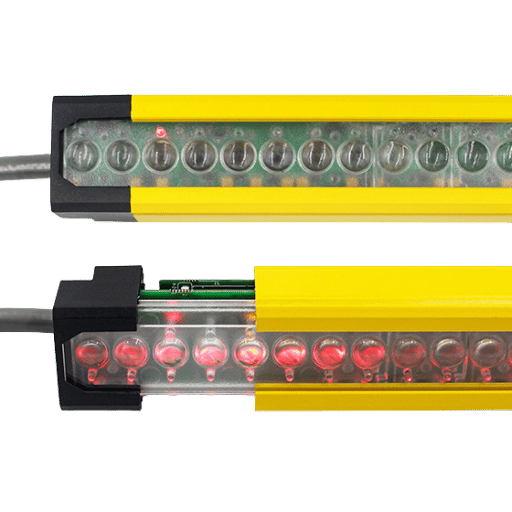

The 30-Second Answer: When You Need Type 2 vs Type 4

If a hazard can cause a serious, irreversible injury, amputation, crushing, or worse, and an operator is exposed often or cannot pull back in time, you need a Type 4 device. If the worst credible outcome is a minor, recoverable injury and exposure is infrequent, a Type 2 device is usually defensible. Everything between those poles is decided by the ISO 13849-1 risk graph, not by instinct.

One warning before the detail: “pick Type 4 to be safe” feels prudent, but it isn’t a substitute for the assessment, and it doesn’t make an installation compliant on its own. We return to why in the cost and safety-distance sections.

What Actually Differs Between Type 2 and Type 4

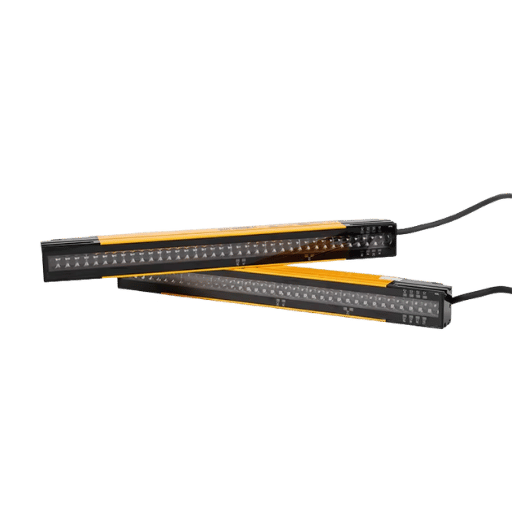

Both types are electro-sensitive protective equipment (ESPE): an emitter projects an array of infrared beams to a receiver, and any interruption of the protective field commands the machine’s safety circuit to stop. What differs is not what they detect, it is how they behave when one of their own components fails. That single property is what the IEC 61496-1,2 “Type” classification certifies, and it separates a Type 2 safety light curtain from a Type 4 safety light curtain.

A Type 2 curtain runs its self-diagnosis periodically, at start-up and at fixed intervals. A fault that develops between those checks can sit undetected until the next test cycle. For a low-energy hazard that window is tolerable; for a power press cycling every few seconds it isn’t, because the undetected-fault window can overlap a hazardous stroke. A Type 4 curtain continuously cross-monitors redundant channels, so an internal fault forces a safe state inside a single response cycle, the device fail toward “stopped,” never toward “running blind.”

That wider ±5° aperture on Type 2 is more than a spec-sheet line. Mounted near a shiny press bed or guard panel, the beam can find a reflective alternate path, an optical short circuit, and “see” through an obstruction that should have tripped it. Maintenance crews on controls forums repeatedly trace mid-cycle nuisance trips and missed detections back to exactly this geometry. QJKH’s ENT Type 4 line uses ±2.5° optics with dual frequency-coded channels for the same reason: to keep adjacent machines and reflective surfaces from corrupting the protective field.

Decoding the Ratings: Type vs Category vs PL vs SIL

Most selection mistakes start here, because four different ratings get treated as one. “Type” isn’t a synonym for “Performance Level,” and you don’t choose a Type directly, you derive a required integrity from your risk assessment, then pick a device Type that can reach it. Here’s the four-axis decode that the SERP guides leave out.

The connective tissue: IEC 61508 is the base functional-safety standard; ISO 13849-1 expresses machinery requirements as a Performance Level; IEC 62061 expresses them as a SIL claim limit; and IEC 61496-1,2 governs the photoelectric device “Type.” A Type 4 curtain is capable of PL e / SIL 3, but the PL you actually achieve depends on the entire safety function: the curtain, the logic (a safety relay or safety PLC), the final actuator, and the wiring category. As a rule of thumb, a Category 2 architecture pairs with a Type 2 device and a Category 4 architecture with a Type 4 device, but drop a Type 4 curtain into a single-channel, non-monitored circuit and the system PL collapses regardless of the device rating. That nuance, device ceiling versus achieved system PL, is the single most expensive misunderstanding in light-curtain procurement.

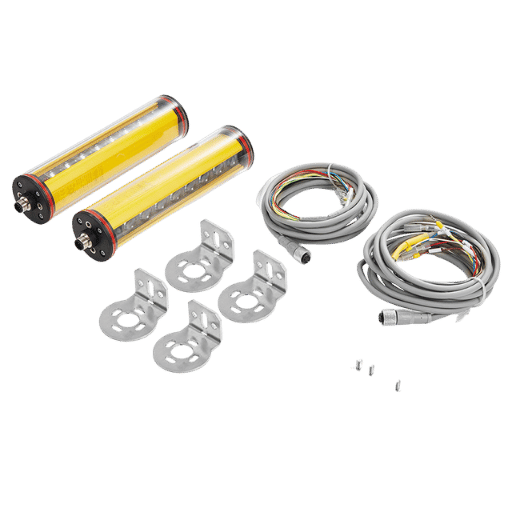

The Risk-Based Selection Decision Tree (ISO 13849-1 Risk Graph)

This is the step every competitor skips. ISO 13849-1 Annex A gives a risk graph that converts three judgments about your hazard into a required Performance Level (PLr). Answer three questions, follow the branch, read the letter, then map the letter to a Type. No guessing.

Read the boundary carefully: the moment severity become S2 (serious/irreversible) and either avoidance drops to P2 or exposure rises to F2, you cross from PLr c into PLr d, and a Type 2 device can no longer satisfy the requirement. That’s the real line between the two products, and it’s a function of your hazard, not your budget. You can work the same logic without the manual using QJKH’s interactive Type 2 vs Type 4 decision tree.

“We bench tested all three ENT configurations against our existing fleet of Banner LS and SICK deTec4 models before publishing this comparison. The 70 m E-class optics use higher-power IR emitters and frequency-coded synchronization, so we can sustain longer ranges without crosstalk on adjacent machines.”

When is a Type 4 safety light curtain legally required?

There is no U.S. regulation that names “Type 4” by line item. OSHA 1910.212 requires that machine guarding protect operators from hazards such as point of operation, and it recognizes presence-sensing devices as an acceptable method. That specific integrity is set by the consensus standards the assessment runs through, IEC 61496-1,2 for the device and ISO 13849-1 for the safety function. In practice, when a risk assessment lands on PLr d or e, as it does for most power presses, press brakes, and robotic cells, only a Type 4 device can meet it, so Type 4 becomes the de-facto legal minimum for that machine. That mandate flows from the risk graph, not from a product catalog.

Resolution and Safety Distance: Why the Type Alone Doesn’t Make You Safe

Here’s the part buyers underrate: a correctly rated Type 4 curtain mounted at the wrong distance, or with the wrong resolution, is defeated as easily as a Type 2. Type sets fault behavior; resolution sets the smallest object the field can detect, and safety distance sets how far back the field must sit so the machine stops before a hand reach the hazard. Get either wrong and the integrity rating on the box is meaningless.

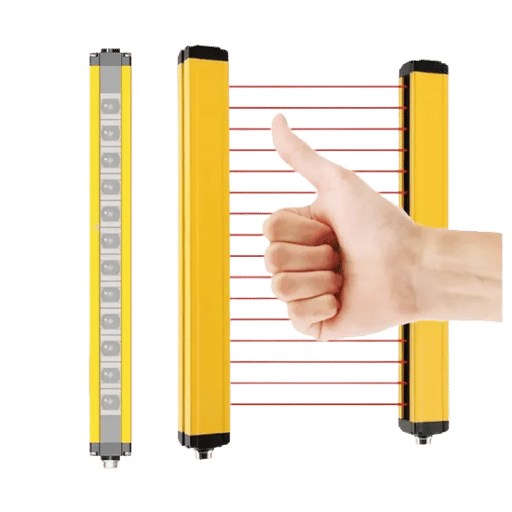

Resolution, the curtain’s detection capability, maps to the body part at risk: 14 mm detects fingers, 25–30 mm detects a hand, 40–45 mm and coarser detects a body or leg. Finer resolution lets you mount closer; coarser resolution forces the curtain farther back. Mounting distance itself comes from ISO 13855.

This is also why response time is worth paying for: under ISO 13855, every additional millisecond of response adds roughly 2 mm of required safety distance at hand-approach speed. At 6 ms, a curtain holds the protective field about 12 mm closer to the hazard than a 12 ms unit, real ergonomic reach preserved without giving up integrity. Run your own numbers with the ISO 13855 safety distance calculator before you commit to a mounting position.

Application-to-Type Mapping: Press, Robotic Cell, Conveyor, Perimeter

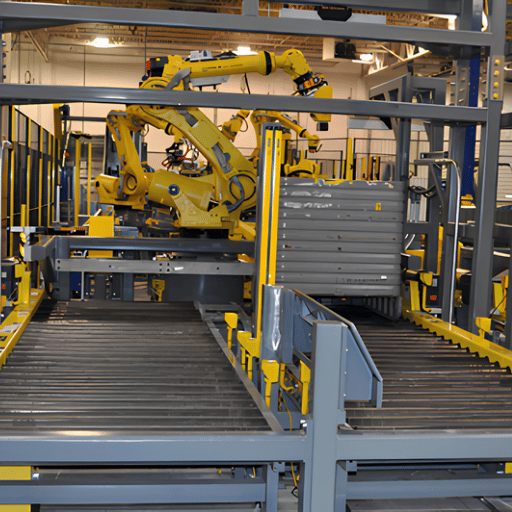

The risk graph play out predictably across common machines. Use this matrix as a starting hypothesis, then confirm it with your own assessment, the kinetic energy, stroke speed, and how often a person reach in all move the S/F/P answers.

Can I use a Type 2 light curtain on a power press?

In almost all cases, no. Such a machine combines a serious, irreversible hazard (S2) with a fast stroke that an operator scarcely has time to avoid (P2), and operators reach into the point of operation repeatedly (F2). On the risk graph that lands at PLr d or e, above the PL c ceiling a Type 2 device can reach. Putting a Type 2 curtain on a press is the classic under-specification failure: it functions day to day, passes a casual glance, and is still the wrong device the first time a fault hides between self-tests during a downstroke. Where a press is loaded from several sides, an ENT-25 cascade through one safety controller cover the openings without dropping below Type 4 integrity.

Here’s where it bites in practice. A fabricator guards a slow indexing conveyor that moves totes past a packing station; a worker only occasionally reaches across it, and the worst credible injury is a pinched finger. That profile reads S1 / F1 / P1 → PLr a, b, and a Type 2 device for perimeter guarding is appropriate and cost-justified. Move the same worker to the press brake two metres away, S2, F2, P2 → PLr e, and the identical “it’s just a reach-in guard” instinct now demands a Type 4 finger-resolution device. Same plant, same operator, opposite answer.

The Cost Question: When Type 4 Is Waste vs Non-Negotiable

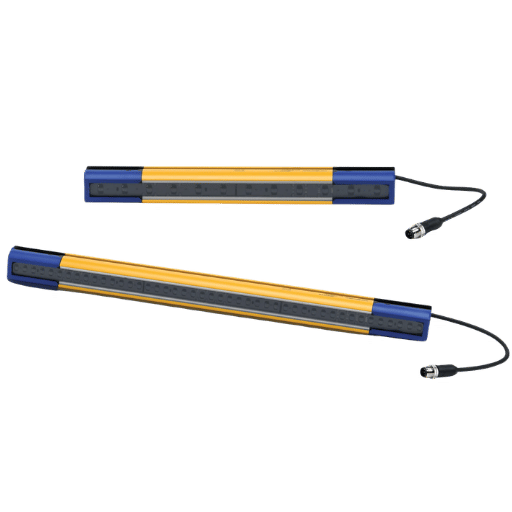

Type 4 devices carry a premium, industry guides commonly cite 15–30% over a comparable Type 2, though the gap narrows with factory-direct sourcing. That instinct to “just buy Type 4 everywhere” feels safe, but it’s over-specification when the risk graph says PLr a, c, and it quietly trains buyers to treat the rating as the whole safety story. Far more dangerous, and far more common, is the opposite error: under-specifying a Type 2 where the graph demand Type 4.

The economics make the floor obvious. The National Safety Council reports amputation as the most costly lost-time workers’ compensation claim, averaging about $125,058 per claim; an ISHN analysis using OSHA’s estimator put a single press-brake amputation at $95,204 in direct cost alone. Against numbers like those, the few hundred dollars between a correct Type 4 and an under-spec Type 2 isn’t a saving, it’s deferred liability. You can model the trade for your own fleet with the machine guarding ROI calculator or OSHA’s Safety Pays estimator.

Integration and Wiring: OSSD, Safety Relay, and Controller Compatibility

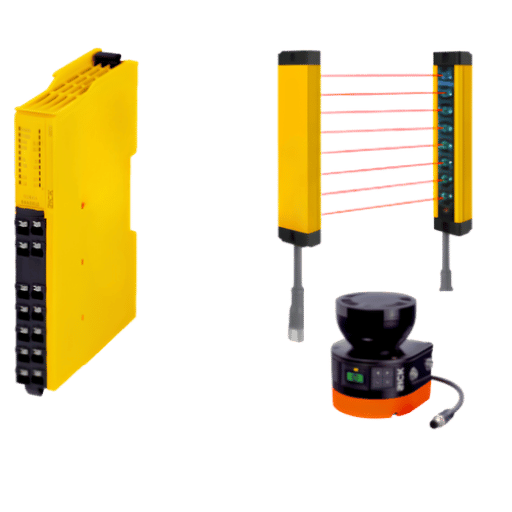

Whichever Type the risk graph selects, the device only delivers its rating when the rest of the safety function preserve it. Both Type 2 and Type 4 curtains output through dual-channel OSSD (output signal switching device) lines, but a Type 4 device feeding a single, unmonitored relay contact throws away its redundancy. Your architecture has to match the device.

• ✔ Wire dual-channel OSSD outputs into a monitored input, a safety relay module or safety PLC, so a single channel fault is detected.
• ✔ Set restart behavior from the risk assessment: manual reset from outside the danger zone for higher-PL functions.
• ✔ Confirm OSSD logic (PNP or NPN) and connector type before you buy, ENT units switch PNP/NPN at the device and use a standard M12 connector, which drops into Allen-Bradley GuardLogix, Siemens, and Pilz platforms without proprietary cabling.
• ✔ For material pass-through, add muting rather than blanking the whole field, see purpose-built muting light curtain configurations.

Muting wiring is where integrators lose the most time, correctly suspending the field while a pallet passes at machine home position, then re-arming the instant a person enters, is a recurring question on controls forums. Confirm the category your function needs first with a PL / SIL category mapper, then size the relay to match.

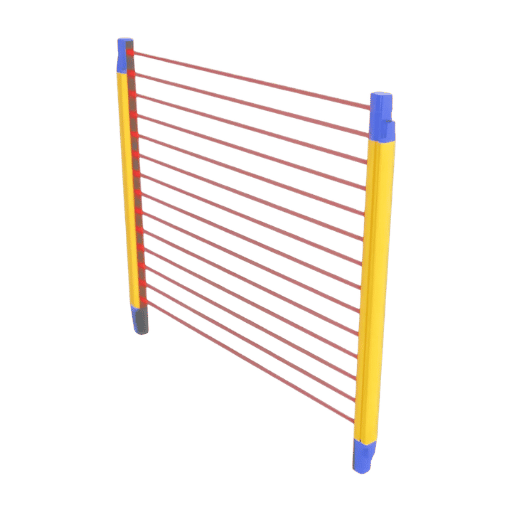

Industry Outlook: Standards and Market Shifts in 2025–2026

Two shifts are changing how this decision gets made. First, the standards are converging. Its product standard, IEC 61496-1 for ESPE, was reworked to align with the risk-assessment framework of ISO 13849 and IEC 62061, meaning the device “Type” is now explicitly downstream of the Performance Level path, exactly the logic this guide follows. ISO 13849-1:2023 is the current revision; safety functions validated against older editions should be re-checked at the next machine-safety audit.

Second, the market is being pulled by automation. The global safety light curtain market is valued at roughly $1.51 billion for 2026, and the growth is concentrated where robotic cells, AGVs, and automated palletizing are expanding, applications that read S2/F2 on the risk graph and therefore demand Type 4 body detection plus muting, not Type 2 perimeter devices. For a 2026 capital plan the implication is concrete: budget for Type 4 where automation is replacing manual handling, and re-run the risk graph on any line you’re retrofitting before you reorder the incumbent device.
