Waterproof Safety Light Curtain

Waterproof Safety Light Curtain — IP67/IP69K Protection for Harsh Environments

QJKH develops IP67 and IP69K waterproof safety light curtains (Type 2 and Type 4) designed for harsh environments where traditional sensors fail. These robust safety devices are built to withstand high-pressure cleaning, outdoor conditions, and chemical splashes, ensuring durability and reducing maintenance needs for assembly lines.

Get a Custom Quote

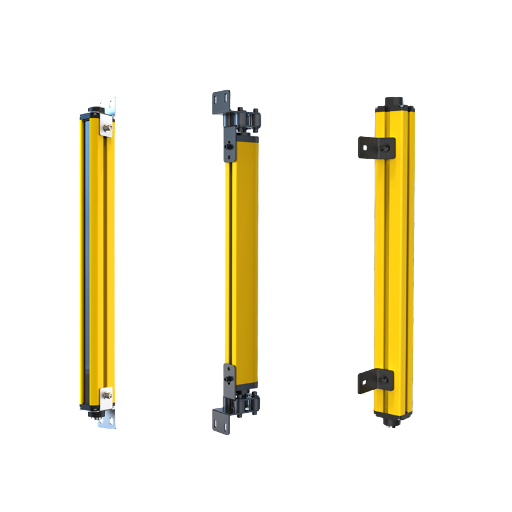

IP67/IP69K Waterproof Safety Light Curtain Type 2 and Type 4

IP67 / IP69K: Waterproof Rating
Type 2 & Type 4: IEC 61496 Safety Types
14 – 40 mm: Resolution Range
Up to 20 m: Detection Range
IEC 61496: Certified Edition 3.0
Free Sample: Evaluation Available

Machine Safety in Harsh Environments — Why Standard Light Curtains Fail as Safety Devices

Safety light curtains with IP54 rating—not the manufacturing standard intended for general factory use—were never designed to be submerged in water on a daily basis, exposed to condensation during high-humidity cycles, or infiltrated by fine particulate matter. In a temperature and humidity-control led assembly hall, a factory-grade (IP54) safety light curtain will operate trouble-free for years. Place the same sensor in a meat-packing operation and subjected to daily ninety-two degree washes, and lens fogging, seal breakdown, and inconsistent beam detection will develop in only months.

Installation and use. Failure modes in these environments are predictable and painful. Water enters the enclosure via cable glands and lens seals with have been used to just splash— not contain under pressure spray. Electronics inside rust. Each IR transmitter and receiver pair. drift apart as gaskets expand, raise and distort. Curtain triggers the safety light curtain—production closes down willy-nilly. OSSD outputs lock out—the line falls silent till the sys. admin. team changes the device.

Unscheduled downtime in food manufacturing and beverage production usually ranges from $5,000 to $15,000 per hour once wastage, sanitation resets, and high labor idle time it included. One safety light curtain that is faulty can take out a production line for four hours and the repair can actually be worth more than the actual price difference from a standard model to a waterproof one.

This is not a theoretical concern. Any ESPE (Electro-Sensitive Protective Equipment) used in a washdown, outdoor or chemically aggressive environment will require an IP rating to suit that environment. Environment-sensor specification matching is as critical as the conjunction between the safety light curtain and the machine control system – get either one wrong and the safety function fails.

IP54 vs IP67 vs IP69K — What the Ratings Actually Mean

The IP (Ingress Protection) code system defined in IEC 60529 uses two digits. Digit one rates solid particle protection on a scale of 0–6, and the second digit rates liquid ingress protection on a scale of 0–9K. For safety-critical ESPE devices deployed in harsh environments, the differences between these ratings are not incremental — they represent fundamentally different protection categories.

Parameter	IP54	IP67	IP69K
Dust Protection	Partial (dust-protected, limited ingress allowed)	Dust-tight (zero ingress after 8-hour test)	Dust-tight (zero ingress after 8-hour test)
Water Protection	Splash from any direction	Immersion at 1 m depth for 30 min	80–100 bar spray at 80°C
Cleaning Method Supported	Dry wipe or damp cloth only	Low-pressure rinse, brief submersion	High-pressure hot washdown, steam cleaning
Fine Particulate (flour, metal dust)	Partial — fine dust penetrates over time	Full protection — sealed enclosure	Full protection — sealed enclosure
Typical Application Environment	Indoor, climate-controlled factories	Outdoor, wet, dusty, condensation-prone	Food/pharma washdown, CIP, steam

Industries Where Standard Safety Curtains Fail First

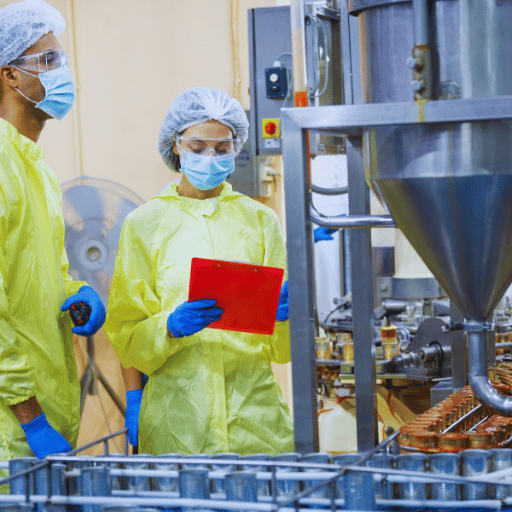

Food and Beverage Processing Environment

Food & Beverage Processing

USDA and EHEDG hygiene requirements mandate daily or per-shift washdown with pressurized hot water and chemical sanitizers. An IP54 safety light curtain on a packaging line access guard will see water intrusion within weeks of installation. Lenses fog, beam alignment drifts, and the safety device becomes unreliable — the opposite of what a safety-rated sensor is supposed to deliver. IP69K is the correct specification for these environments.

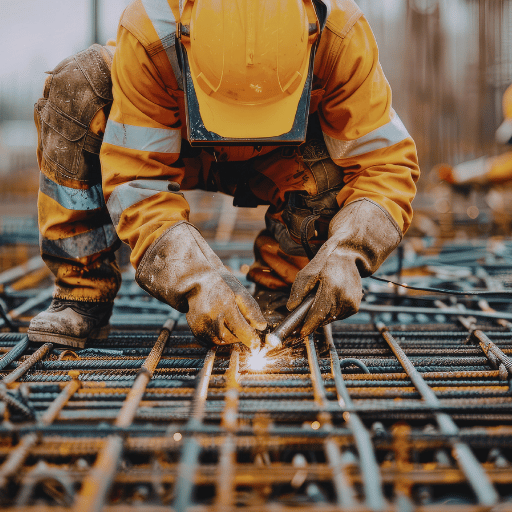

Outdoor Steel, Lumber, and Mining

Rain, snow, temperature swings from -20°C to +40°C, metal dust, and wood particulate all attack exposed sensors continuously. Condensation cycling alone — moisture forming inside the housing during temperature drops, then evaporating during the day — accelerates corrosion of internal PCBs. An IP67-rated safety light curtain with an extended operating temperature range eliminates these failure modes.

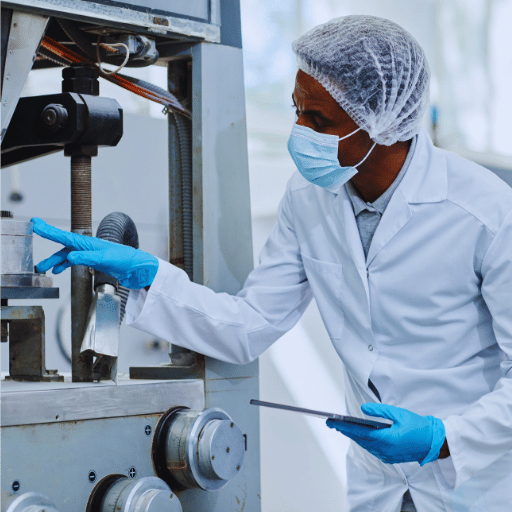

Chemical and Pharmaceutical Manufacturing

CIP (Clean-in-Place) processes involve aggressive cleaning agents, high-temperature water, and sometimes steam at pressures that would breach any standard sensor housing. Any safety device in the splash zone of a CIP system needs chemical-resistant housing materials and IP69K-level sealing to survive without frequent replacement.

Engineering Note: Standard safety light curtains from any manufacturer were not designed for daily high-pressure washdown. This is not a quality issue with any particular brand — it is a specification mismatch. An IP54 sensor performing exactly to its rated specification will still fail prematurely in a washdown environment, because IP54 was never intended for that use case. Selecting the correct IP rating for the actual environment, not replacing inadequate units more frequently.

Curtains — Type 2 & Type 4 Series with Selection Guide Waterproof Safety Light Curtains: Type 2 & Type 4 Series

How Safety Light Curtains Work — Infrared Beam Detection Principle

A safety light curtain is an optoelectronic presence-sensing safety device — classified as an ESPE (Electro-Sensitive Protective Equipment) under IEC 61496. Operating principle: the device creates an invisible detection grid using parallel infrared light beams between a transmitter unit and a receiver unit. When a person, hand, or finger breaks one or more beams, the receiver registers the interruption and the safety light curtain signals the machine control system to initiate a stop command.

The signal chain is: Infrared transmitter emits parallel beams → beams travel across the detection zone → receiver detects each beam’s status (present or interrupted) → dual-channel OSSD output signals the safety relay or control panel PLC → machine achieves safe state. Dual OSSD (Output Signal Switching Device) architecture ensures both output channels must agree on the detection state — if either channel detects a fault or discrepancy, the system transitions to a safe state automatically.

Resolution

Resolution — the center-to-center spacing between adjacent infrared beams — determines the minimum object size the safety light curtain can reliably detect:

14 mm resolution: Finger detection. Required when operators’ fingers can reach the hazardous zone. This is the highest-resolution configuration and the standard for press brake and punch press point-of-operation guarding where the operator’s hands work close to the hazard.
25 mm resolution: Hand detection. Appropriate for applications where the access opening geometry prevents individual fingers from entering the hazardous zone, but a hand could reach through.
40 mm resolution: Body detection. Used for perimeter guarding and area access control where the detection target is a person’s limb or torso entering a protected zone.

Response time directly affects the minimum safety distance — the closest permissible mounting point for the safety light curtain relative to the hazard. Per EN ISO 13855, the safety distance formula is: S = (K × T) + C, where K is the approach speed (1600 mm/s for finger detection, 2000 mm/s for hand/body), T is the total system response time (safety light curtain response time + machine stopping time), and C is a supplementary distance based on the detection capability. A safety light curtain with a faster response time allows mounting closer to the machine, recovering valuable floor space in cramped production layouts.

Muting and Blanking — Handling Material in the Detection Field

In automated production lines, material must pass through the detection field without triggering a machine stop. Muting temporarily suspends the safety function using external muting sensors — most often paired photoelectric sensors that detect the approaching workpiece. Muting logic confirms “this is material, not a person” and allows the object to pass through while maintaining full safety detection during non-muting periods.

Blanking permanently ignores specific beams in the detection field. Fixed blanking deactivates designated beam positions to accommodate permanent fixtures or machine protrusions. Floating blanking ignores a configurable number of consecutive blocked beams anywhere in the field — useful for material guides or conveyors that partially intrude into the detection zone at varying positions.

Type 4 Safety Light Curtain Series — SIL 3 / PLe / Category 4

QJKH’s Type 4 safety light curtains are built for applications requiring the highest safety integrity: Performance Level e (PLe) per ISO 13849-1, Safety Integrity Level 3 (SIL 3) per IEC 62061, and Category 4 architecture with built-in high diagnostic coverage. Type 4 under IEC 61496-1 designates an ESPE device that can detect a single fault and continue to perform the safety function even in the presence of that fault — the highest classification available for active optoelectronic protective devices (AOPDs).

Model Series	Resolution	Detection Height	Range	Response Time	IP Rating	Output
QLC-T4-14	14 mm	160 – 1800 mm	0.3 – 20 m	8 – 14 ms	IP67	2× PNP OSSD
QLC-T4-25	25 mm	160 – 1800 mm	0.3 – 20 m	10 – 16 ms	IP67	2× PNP OSSD
QLC-T4-40	40 mm	240 – 1800 mm	0.3 – 20 m	12 – 18 ms	IP67	2× PNP OSSD
QLC-T4-14-IP69K	14 mm	160 – 1500 mm	0.3 – 15 m	8 – 14 ms	IP69K	2× PNP OSSD
QLC-T4-25-IP69K	25 mm	160 – 1500 mm	0.3 – 15 m	10 – 16 ms	IP69K	2× PNP OSSD

All Type 4 models feature Category 4 internal architecture: dual microprocessors with cross-monitoring, automatic restart lockout (preventing unexpected machine restart after a safety event), and external device monitoring (EDM) input for verifying that downstream contactors and safety relays have properly de-energized. Self-diagnostic circuitry checks transmitter LED output levels, receiver sensitivity thresholds, timing synchronization, and internal logic integrity on every scan cycle — a fault in any monitored parameter triggers an immediate transition to the safe state.

Important for Specifiers: IEC 61496-1 Edition 3.0 (2020) made a significant reclassification — Type 2 ESPE devices can no longer be used to achieve Performance Level e (PLe). If your risk assessment determines that PLe is required, you must specify a Type 4 safety light curtain. Existing installations that rely on Type 2 devices for PLe safety functions should be reassessed for compliance with the current standard edition.

Type 2 Safety Light Curtain Series — SIL 2 / PLd

For applications where the risk assessment determines that Performance Level c (PLc) or Performance Level d (PLd) provides adequate risk reduction, QJKH’s Type 2 safety light curtain series offers a cost-effective solution. Type 2 devices per IEC 61496-1 detect faults and initiate a safe state at the next demand on the safety function — they check for faults at startup or when the safety function is next called, rather than continuously during operation as Type 4 devices do.

Model Series	Resolution	Detection Height	Range	Response Time	IP Rating	Output
QLC-T2-25	25 mm	200 – 1500 mm	0.3 – 12 m	12 – 20 ms	IP67	2× PNP OSSD
QLC-T2-30	30 mm	200 – 1500 mm	0.3 – 15 m	14 – 22 ms	IP67	2× PNP OSSD
QLC-T2-40	40 mm	240 – 1800 mm	0.3 – 18 m	14 – 22 ms	IP67	2× PNP OSSD

Type 2 safety light curtains are appropriate for low-to-medium risk machine guarding: access detection on assembly stations, packaging equipment where hazardous motion stops within the machine cycle, and non-press applications where hand or body-level detection provides adequate protection. Unit cost runs lower than equivalent Type 4 models, and the wiring, mounting, and safety relay integration requirements are identical.

Selection Guide — Choosing the Right Safety Light Curtain

Selecting the correct safety light curtain requires balancing three interdependent factors: the Performance Level required by your risk assessment (per ISO 13849-1), the environmental conditions at the installation point, and the detection resolution dictated by the application geometry and access opening size. Below, a decision matrix maps common industrial applications to recommended QJKH models.

Application	Risk Level	Min. Type	Resolution	IP Rating	Recommended Model
Press / punch point-of-operation	High (PLe)	Type 4	14 mm	IP65+	QLC-T4-14
Food line access guarding (washdown)	High (PLe)	Type 4	25 mm	IP67 / IP69K	QLC-T4-25-IP69K
Perimeter guarding — outdoor	Medium (PLd)	Type 4	40 mm	IP67	QLC-T4-40
Palletizer / robotic cell entry	High (PLe)	Type 4	25 – 40 mm	IP67	QLC-T4-25
Low-risk assembly station	Low (PLc)	Type 2	30 mm	IP65+	QLC-T2-30
Packaging equipment access	Medium (PLd)	Type 2	25 mm	IP67	QLC-T2-25

Safety Distance Reminder: After selecting the safety light curtain type and resolution, you must calculate the minimum safety distance per EN ISO 13855 before finalizing the mounting position. The formula S = (K × T) + C requires the total system response time — the safety light curtain’s own response time plus the machine’s stopping time. Machine stopping time must be measured on the actual machine, not estimated. Mounting the safety light curtain too close to the hazardous zone means the machine may not reach a safe state before the operator’s hand reaches the danger point — a safety distance error that no sensor specification can compensate for.

Get Instant Quote

Standard vs. IP67 / IP69K Safety Light Curtains: Performance Comparison

Head-to-Head: IP54 vs IP67 vs IP69K Protection

Choosing between a standard safety curtain and a waterproof safety light curtain is a specification decision driven by environment, not preference. Below is the comparison data that informs that decision, drawn from IEC 60529 test criteria and field deployment records.

Standard (IP54)

Dust Ingress Partial protection — limited ingress permitted

Water Protection Splash from any direction

Operating Temperature 0 to +55°C

Approved Cleaning Wipe only

Typical MTBF in Washdown 6–12 months

Housing Construction Standard aluminum extrusion

Electrical Connection Standard cable gland

Lens Material Standard acrylic

Waterproof (IP67)

Dust Ingress Dust-tight — zero particle ingress

Water Protection Immersion: 1 m depth / 30 min

Operating Temperature -25 to +70°C

Approved Cleaning Low-pressure rinse, brief submersion

Typical MTBF in Washdown 3–5 years

Housing Construction Sealed aluminum + double gaskets

Electrical Connection IP67-rated M12 connector

Lens Material Hardened acrylic, fully sealed

Extreme Washdown (IP69K)

Dust Ingress Dust-tight — zero particle ingress

Water Protection 80–100 bar spray at 80°C

Operating Temperature -25 to +70°C

Approved Cleaning High-pressure hot washdown, CIP

Typical MTBF in Washdown 5+ years

Housing Construction Stainless steel options available

Electrical Connection IP69K-rated M12 connector

Lens Material Tempered glass, fully sealed

The IP code from IEC 60529 assigns the first digit for solid particle protection (0–6, where 6 means dust-tight) and the second for liquid ingress protection (0–9K). The "K" in IP69K originates from DIN 40050-9, a standard specifically created for high-pressure, high-temperature washdown testing in the food and automotive industries. IP69K does not simply mean "better than IP68" — it tests a fundamentally different failure mode. IP68 tests continuous immersion at depths greater than 1 m. IP69K tests resistance to close-range, high-pressure, high-temperature spray. A sensor can pass IP68 and fail IP69K, or vice versa. For washdown environments, IP69K is the relevant test.

Long-Term ROI of a Washdown Safety Light Curtain

Total Cost of Ownership

Waterproof vs Standard: 3–5× Longer Service Life

Field deployments in washdown environments consistently show three to five times longer service life for IP67-rated safety light curtains compared to standard IP54 units operating in the same conditions. When you account for replacement hardware costs, installation labor (electrician time + machine lockout/tagout + optical realignment + safety function validation), and production downtime during each swap event, waterproof units deliver 40–60% lower five-year total cost of ownership.

Initial cost delta is — around 20–40% higher for an IP67 or IP69K safety light curtain versus a standard-rated model of equivalent specifications — is recovered within 6–18 months in environments that require daily or per-shift washdown. Beyond that break-even point, every additional month of operation compounds the TCO advantage of the correctly specified waterproof unit.

"A cheaper sensor that fails prematurely or causes production stoppages can be far more expensive in the long run."

TCO factors to include in your evaluation:

Replacement frequency × unit cost
Installation labor per swap (around 2–4 hours including validation)
Production downtime cost per hour
Safety function revalidation cost per replacement
Spare parts inventory carrying cost
Compliance risk of operating with degraded safety during replacement lead time.

Environmental Stress Testing

How We Validate IP67/IP69K

Claiming an IP rating and proving it under controlled, repeatable test conditions are two different things. QJKH waterproof safety light curtains undergo testing at accredited third-party laboratories (TÜV, SGS) — not self-declared internal assessments.

The specific test protocols per IEC 60529:

IP67 immersion test: The complete safety light curtain assembly — housing, lens, connectors, cables attached — is submerged in water at 1 m depth for 30 minutes. Post-test inspection must confirm zero water ingress into the housing interior. After removal, the unit must power on and function within full specification immediately after removal from water.

IP69K high-pressure spray test: Water heated to 80°C is sprayed at 80–100 bar pressure with a flow rate of 14–16 L/min from a nozzle distance of 100–150 mm. Spray is applied at four angles — 0°, 30°, 60°, and 90° — each held for 30 seconds. This simulates the most aggressive industrial CIP and sanitation protocols.

Temperature cycling: The unit is cycled repeatedly between -25°C and +70°C to verify that thermal expansion and contraction cycles do not compromise seal integrity, optical alignment, or electronic function over the rated operating life.

Third-party test certificates for all QJKH IP67 and IP69K safety light curtain models are available on request. These documents provide auditable evidence for your machine safety file, CE technical file, or OSHA machine guarding compliance records.

Real-World Results — Uptime & Compliance in Washdown Environments

Food Processing — Daily Washdown Line Safety

Application: Poultry Packaging Line — Daily High-Pressure Washdown

Environment: Food packaging plant running two shifts per day, six days per week. End-of-shift sanitation protocol using 60°C pressurized water and alkaline chemical sanitizer. Safety light curtains guard operator access points along a multi-station packaging line conveyor with muting enabled for product passage.

Previous setup:

IP54-rated safety curtains from a European manufacturer. Average replacement cycle: 6–12 months per unit due to water ingress and lens fogging. Each replacement event required 4–8 hours — electrician time for disconnection/reconnection, lockout/tagout procedure, optical beam alignment, and safety function validation test per the machine safety file.

After IP69K upgrade:

QJKH QLC-T4-25-IP69K units installed on the same mounting brackets using identical M12 connector wiring. Three years into the deployment — zero replacements attributed to water or sanitation damage. Infrared beam detection arrays remain stable through daily washdown cycles. Blanking setup unchanged from initial setup.

Estimated impact: 120+ hours of recovered production time per line per year, previously consumed by safety light curtain replacements and the associated production stoppages.

Outdoor Manufacturing — Weather-Exposed Applications

Application: Steel Yard Perimeter Guarding — Year-Round Weather Exposure

Environment: Steel service center in a continental climate zone. Safety light curtains mounted on outdoor perimeter fencing around automated cutting and material handling equipment. Conditions: -20°C winters with snow and ice, +38°C summers with direct sun, year-round rain, and persistent airborne metal dust from cutting operations.

Previous setup:

Standard indoor-rated safety light curtains housed in protective enclosures. Enclosures trapped condensation internally, causing accelerated corrosion despite the intended protection. Seasonal recalibration was required as thermal expansion caused beam misalignment between transmitter and receiver units. Ice formation on exposed lens surfaces triggered false detection events during winter mornings, halting operations until the ice cleared.

After IP67 upgrade:

QJKH QLC-T4-40 units with IP67 rating installed directly on the perimeter fence without additional enclosures. Sealed, dust-tight housing eliminates internal condensation. Extended operating temperature range (-25°C to +70°C) eliminated seasonal alignment drift. Heated lens accessories available for installations in extreme ice-prone locations.

Chemical & Pharmaceutical — Corrosion-Resistant Applications

Application: Pharmaceutical Blister Pack Line — CIP-Compatible Safety

Environment: GMP-compliant pharmaceutical packaging facility. Regular CIP (Clean-in-Place) cycles using sodium hydroxide solution and peracetic acid cleaning agents. Safety light curtains positioned on reactor access points and blister packaging machine entry guards — within the direct splash zone of CIP discharge.

Requirements:

The safety light curtains must withstand chemical splash from CIP agents without housing degradation or seal breakdown. Smooth, crevice-free external surfaces required for cleanability — no recessed fasteners, label edges, or housing joints that could harbor bacterial contamination. IP69K rating mandatory for periodic high-pressure sanitization. Complete documentation traceability for GMP audit and validation compliance.

Solution:

QLC-T4-14-IP69K with stainless steel mounting hardware and chemical-resistant cable assemblies with IP69K-rated M12 connectors. Fully sealed connector interfaces and gasket-sealed tempered glass lens assembly prevent chemical ingress. Housing external surfaces are smooth and free of recesses, meeting hygienic design principles per EHEDG guidelines.

Get a quote based on your application →

Certifications & Compliance — IEC 61496, IP67/IP69K, ISO 13849

IEC 61496-1/2 ISO 13849-1 (PLd / PLe) IEC 60529 (IP67 / IP69K) SIL 2 / SIL 3 CE Marked RoHS Compliant

IEC 61496-1 Edition 3.0 — What Changed for Safety Light Curtains

The 2020 revision of IEC 61496-1 introduced a reclassification that directly affects how safety engineers and machine builders specify ESPE devices for new projects. In earlier editions of the standard, both Type 2 and Type 4 safety light curtains could potentially be used to achieve Performance Level e (PLe) under certain specific architectural conditions. Edition 3.0 established a definitive boundary: Type 4 is now the minimum requirement for PLe safety functions.

Under the current edition, Type 2 devices are limited to a maximum achievable Performance Level of PLc independently, and can contribute to PLd only when combined with additional architectural measures in the overall safety-related control system. This means existing installations that rely on Type 2 safety light curtains as the primary ESPE for PLe-rated safety functions should be reassessed. New machine designs requiring PLe must specify Type 4 — there is no longer an architectural workaround using Type 2 devices alone.

Technical rationale reflects the fundamental difference in fault detection architecture: Type 4 devices perform continuous self-monitoring with high diagnostic coverage and maintain the safety function even in the presence of a single fault. Type 2 devices check for faults only at specific intervals — at power-up or upon the next demand on the safety function. For Performance Level e, the standard now explicitly requires the continuous fault detection and fault tolerance that only Type 4 architecture provides.

IP67 & IP69K Certification per IEC 60529

An IP rating carries weight only when backed by documented, independent verification. Many safety sensor products ship with self-declared IP ratings products with self-declared IP ratings — manufacturer claims without third-party testing evidence. In the context of functional safety, this distinction is significant.

QJKH's position is straightforward: every IP67 and IP69K safety light curtain model in our product range undergoes IP testing at accredited third-party laboratories. Resulting test reports are issued under the laboratory's accreditation and certification marks, not under QJKH's internal quality system. These reports document the precise test conditions (water temperature, pressure, duration, spray angles, immersion depth) and the pass/fail criteria applied — all per IEC 60529.

For your machine safety file (whether for the EU Machinery Directive, OSHA compliance in North America, or equivalent local regulations), a third-party IP certification provides defensible, auditable evidence that the safety device meets its claimed environmental protection rating. Self-declared ratings may not withstand scrutiny during a regulatory safety audit or — more critically — during an incident investigation.

ISO 13849 Performance Levels — PLc to PLe Selection

ISO 13849-1 defines five Performance Levels (PLa through PLe) representing the reliability of a safety-related control system in performing its intended safety function under foreseeable conditions. Required PL for a specific safety function is determined by a risk assessment evaluating three factors: severity of potential injury, frequency and duration of exposure to the hazard, and the possibility of avoiding the hazard or limiting harm.

PLe (highest)

Required for the most hazardous applications where a safety function failure could result in serious or fatal injury, exposure is frequent, and the operator has limited ability to avoid the hazard. Requires Category 3 or Category 4 architecture with high diagnostic coverage. QJKH Type 4 safety light curtains achieve PLe.

PLd

High-risk applications where Category 2 or Category 3 architecture provides adequate probability of dangerous failure. QJKH Type 2 safety light curtains achieve PLd.

PLc

Medium-risk applications. Both QJKH Type 2 and Type 4 models satisfy PLc requirements.

When the required Performance Level is ambiguous from the risk assessment results, the conservative approach is to specify the higher PL — and correspondingly, a Type 4 safety light curtain. Over-specifying the safety level adds to the component cost but introduces zero additional safety risk. Under-specifying creates a compliance gap and a genuine hazard to personnel.

Schedule a Technical Consultation →

Procurement Guide — Pricing, Lead Time & OEM Options

Pricing Factors — What Affects Cost

Safety light curtain pricing varies significantly by specification, and the lowest-price option is rarely the most economical choice over its installed service life. Primary factors that determine per-unit cost:

Safety classification: Type 4 safety light curtains cost more than Type 2 due to the dual-processor Category 4 architecture, higher-coverage self-diagnostics, and more rigorous production testing requirements.
Resolution: 14 mm finger-detection models require more infrared transmitter/receiver pairs per unit of protected height, increasing component count and cost relative to 25 mm or 40 mm models.
Detection height: Taller protected heights require longer housings with correspondingly more beam pairs. A 1800 mm safety light curtain costs considerably more than a 400 mm unit in the same model series.
IP rating: IP67 and IP69K models carry a premium over standard IP65 due to enhanced sealing systems, upgraded connector specifications, and additional environmental qualification testing. IP69K pricing exceeds IP67 due to stainless steel housing options and higher-grade elastomeric seals.
Quantity: Volume pricing is available across all model series. OEM and multi-year project quantities qualify for tiered pricing structures.

Procurement Tip

When comparing quotes between suppliers, evaluate the total installed cost over the expected service life — not the per-unit purchase price alone. A waterproof safety light curtain that costs 30% more at purchase but lasts 4× longer in your specific environment will deliver substantially lower total expenditure. When requesting a quotation from QJKH, include your application parameters — detection height, resolution, IP rating requirement, installation environment description, and target quantity — for an accurate, application-specific quote.

Lead Time & Delivery

Standard models in commonly ordered setups (standard detection heights, IP67) are available from stock or on short lead times. Custom detection heights, non-standard cable lengths, IP69K variants, and OEM builds may require additional production lead time depending on the specification and order quantity. Contact QJKH for current availability and lead time estimates based on your specific requirements.

International shipping is coordinated from QJKH's manufacturing and logistics facility in the Hangzhou Airport Economic Zone, with established freight forwarding channels for air and sea delivery worldwide. For customs clearance planning, safety light curtains are typically classified under HS code 9031.49 (optical measuring or checking instruments) — confirm the applicable tariff code with your customs broker for your specific importing jurisdiction.

OEM & Private Label Programs

QJKH has manufactured safety sensors under OEM and private-label agreements for over 20 years. Our factory in the Hangzhou Airport Economic Zone supports the full OEM cycle from specification through certification:

Custom branding: Your company logo, model designations, and part numbers on the sensor housing, product labels, packaging, and technical documentation.
Custom specifications: Non-standard detection heights, special mounting bracket designs, custom cable assemblies and lengths, modified beam spacing options, and application-specific firmware parameters.
Engineering collaboration: QJKH's application engineering team works directly with your product development group on specification development, prototype testing, and third-party certification support.
Flexible MOQ: Minimum order quantities are negotiated per project and scaled to your distribution volumes and integration schedules.

Get a Custom Quote ➔

Interactive Safety Light Curtain Selection Tools

IP Rating Selection Guide

Answer 4 questions about your operating environment. We'll recommend the right ingress protection rating for your safety light curtain.

Start Guide

Safety Light Curtain Model Selector

Answer 4 questions and we'll match you with the right QJKH safety light curtain for your application.

Find Your Model

Frequently Asked Questions — Waterproof Safety Light Curtains

What is the price range for waterproof safety light curtains?

Pricing depends on the safety type (Type 2 vs Type 4), resolution (14 mm, 25 mm, or 40 mm), detection height, and IP rating (IP67 vs IP69K). Rather than publishing a generic price list that would not reflect your actual specification needs, QJKH provides application-specific quotations. Contact us with your requirements for a detailed quote — most responses within 24 hours.

Can I get a free sample before ordering?

Yes. QJKH offers free evaluation units matched to your application. You can test infrared beam detection performance, response time, and waterproof sealing integrity in your actual environment before committing to a purchase order. There is no obligation attached to the sample program.

Do you offer OEM / private label safety light curtains?

Yes — OEM and private-label manufacturing is a core part of QJKH's business. With over 20 years of safety sensor manufacturing experience, we support custom branding, custom specifications, modified firmware, custom packaging, and full engineering collaboration from specification through certification.

What is the lead time for standard and custom orders?

Standard configurations in common detection heights are typically available with short lead times from our Hangzhou facility. Custom orders — non-standard protected heights, IP69K variants, or full OEM builds — require additional production time that varies by specification complexity and quantity. Contact QJKH for current estimates specific to your order.

How do I choose between Type 2 and Type 4 safety light curtains?

Selection follows the Performance Level (PL) required by your risk assessment under ISO 13849-1. If the required PL is PLe, you must use a Type 4 safety light curtain — this became a firm requirement under IEC 61496-1 Edition 3.0 (2020), which eliminated Type 2 devices from PLe-capable setups. For PLc and PLd applications, Type 2 is adequate and more cost-effective. When the required PL is ambiguous, Type 4 is the conservative and recommended choice.

What IP rating do I need — IP67 or IP69K?

IP67 provides full dust-tight sealing and protection against temporary immersion — sufficient for outdoor exposure, rain, dust, condensation, and occasional low-pressure rinsing. IP69K is required when the safety light curtain will be subjected to high-pressure hot washdown — water above 60°C at pressures exceeding 30 bar. This is standard in food processing, dairy, meat packing, and pharmaceutical sanitation. If your facility uses foam-and-rinse, CIP, or pressurized hot water cleaning protocols, specify IP69K.

What resolution (beam spacing) do I need for my safety light curtain?

14 mm resolution detects an adult finger and is required for point-of-operation guarding on presses, die-cutting machines, and similar applications where the operator's fingers approach the hazardous zone. 25 mm detects a hand — appropriate for access guarding where the opening geometry prevents finger entry but permits hand access. 40 mm detects a body (limb or torso) and is used for perimeter and area guarding. Minimum resolution requirement is typically dictated by the risk assessment, the geometry of the hazardous zone access opening, and the applicable standards for the specific machine type.

How does a safety light curtain protect machine operators?

A safety light curtain creates an invisible detection plane using parallel infrared beams between a transmitter and a receiver. When any beam is interrupted — by a hand, finger, or body entering the protected zone — the receiver immediately signals the machine to stop via dual OSSD outputs connected to a safety relay or control panel PLC. Typical response times range from 8 ms to 22 ms based on beam count and detection height. For a detailed explanation including muting, blanking, and the safety distance calculation, see the technical section on this page.

What is the difference between a safety light curtain and a safety laser scanner?

A safety light curtain creates a linear, planar detection field — a vertical "wall" of infrared beams between two fixed mounting points (transmitter and receiver). A safety laser scanner uses a rotating laser beam to monitor a two-dimensional area, typically on a horizontal plane at floor level. Safety light curtains are the standard choice for machine access guarding (vertical mounting across an opening), while safety laser scanners excel at area monitoring, AGV/AMR path safety, and applications requiring configurable, irregularly shaped detection zones. Many installations use both: a waterproof safety light curtain for the machine point-of-operation and a laser scanner for area-level perimeter protection around the wider work cell.

What are common safety light curtain problems in wet environments?

Most frequent failure modes for standard-rated (IP54) safety light curtains in wet environments are: lens fogging from internal condensation cycling, seal degradation from repeated thermal expansion with trapped moisture, corrosion of internal electronics from water ingress through cable glands and connector interfaces, infrared beam misalignment from housing expansion/contraction, and nuisance trips caused by water droplets or condensation on the lens surface that scatter the infrared beams. Every one of these failure modes is an environment-specification mismatch problem — not a product defect. They are solved by specifying a safety light curtain with the correct IP rating (IP67 or IP69K) for the actual installation environment.
