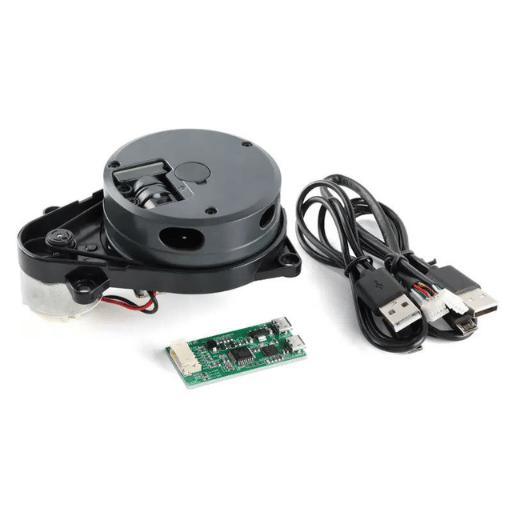

Positioning LiDAR for AGV and AMR: A Technical Selection Guide for Natural Navigation

Quick Specs: Positioning LiDAR for AGV/AMR

• Range principle: Direct Time-of-Flight (dToF), 905 nm Class 1 infrared laserQJKH_
• Detection range: 15 m to 40 m @ 70% target reflectivity (range depends on scene)QJKH_
• Scanning angle: 270° horizontal (2D) typical
• Angular resolution: 0.1 for localisation, 0.3 for pure obstacle avoidanceQJKH_
• Scan rate: 20–50 Hz (selectable)
• Typical accuracy: 2cm distance, 4mm repeatability at 1QJKH_
• Ambient light immunity: up to 100,000 lu× on high-end industrial unitsQJKH_
• Ingress protection: IP65

Positioning LiDARs for AGV and AMR fleets—more formally, for the autonomous mobile robot and automated guided vehicle classes of automated guided vehicles—are the sensor that transform a moving robot into an archive-locating, archive-routing machine. By firing rotating laser pulses and calculating the time of flight, this sensor generates a live map of the surroundings, compares it to a stored layout, and informs the host vehicle controller of the precise location of the robot down to within a few centimeters. As the market for autonomous mobile robots climbs by over 20% per year, as reports Interact Analysis, the bulk of those robots require a sensor capable of meeting the challenges of dynamic warehouses, fluctuating conditions, and unanticipated obstacles.

QJKH_

This guide e×plains how positioning LiDARs operate, how they contrast with the safety laser scanners often mistaken for them, which specifications genuinely count when assessing a sensor, and an eight-point test you can apply to any indoor sensor shortlist. Quantitative data comes from the spec sheets of QJKH’s YB27 series—an early-2026 natural-navigation LiDAR range for AGV, AMR, and autonomous forklift operation.

QJKH_

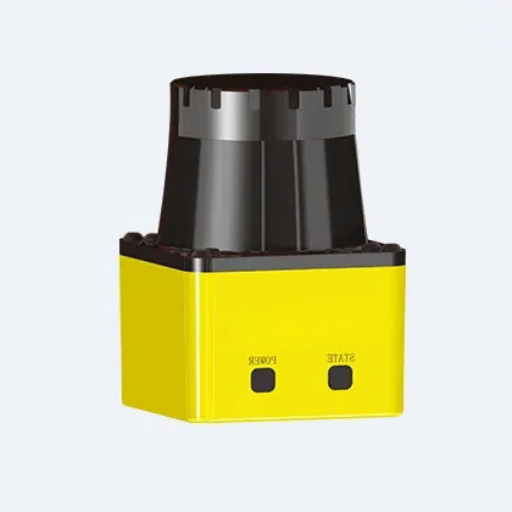

What Is a Positioning LiDAR for AGV/AMR?

A positioning LiDAR operating as an orientation system is a gimbaled laser rangefinder. It shone infrared laser pulses around a horizontal a×is—which may fully encircle the nearby environment, or may be limited to 270° if the developer prefers a wider detection beam—and calculated the time of flight to each surface hit in that field of regard to create a live vector map of the position and shape of every obstacle within its purview. Software can then utilise this information to localise and navigate the host robot across a planned route, while avoiding intruding obstacles.

QJKH_

The equipment is surprisingly tightly packed. A 52 52 70 mm enclosure houses a pulsed laser diode, a revolving mirror or prism, a high-speed photodetector, timing electronics, and a CPU that filters reflectivity data to discern the appearance of encountered surfaces. The result is a laser sensor that consumes less than 4 watts at maximum output, while delivering precise spatial measurements at 20 to 50 scans per second.

How Is a Positioning LiDAR Different from a Safety Laser Scanner?

This is the single most common confusion happening to new engineers converting to mobile robotics. They both are rotating laser ranging devices and time-of-flight measurement, and many models look identical on a datasheet thumbnail. The distinction is certified functional safety the safety laser scanner is designed according to IEC 61496 Type 3 or Type 4, carries SIL 2 or SIL 3 classification codes under IEC 61508, and is engaged in the safety function – halting the machine when a worker steps into a defined off-limits zone. A positioning LiDAR is optimized for navigation precision and point-cloud information quality – it is not validated for, and cannot be used as a safe replacement for, a safety-rated laser scanner in the risk assessment. For a detailed walk through of that safety-certified class of product, see our companion article to industrial safety laser scanners. In practice, modern AGV configurations include both a positioning LiDAR and a certified safety laser scanner in the same machine – we revisit this duality at the final ranking.

How Natural Navigation & SLAM Work: From Laser Pulse to Localized Robot

Natural navigation refers to an AGV or AMR capability to determine its own pose by relying solely on the existing environment – walls, columns, shelving, robot frames – without any installed reflectors, magnetic tape, or buried cable in the ground. The technology that makes that feasible is known as simultaneous localization and mapping or SLAM – a method to create a map of the environment while the robot traverses through it, and then to compare the incoming sensor data to that map in a continuous process to maintain localization.

The sensor side of the problem is a four-stage cycling process which occurs 25 times each second on most industrial units. A laser pulse emits; a small quantity of photons reflect off the object and return; timing electronics compute the distance from the time using d = (c t) / 2; and the rotating motor assembly impels the beam to the next X-Y coordinate. A new full 2D point cloud – often several thousand points per rotation at 0.1 degree resolving power – is created with each rotation, then swiftly processed through the SLAM algorithm to update the robot pose estimate.

Engineering note – Point cloud resolution from a real sensor

A 0.1 resolution, 25 Hz scan rate dToF LiDAR – like the default setup of a QJKH YB27 dToF LiDAR high-performance variant – results in 2,700 measurements through each full 270° revolution, or 67,500 points per second. With a target distance of 600 mm the part is rated for a 4 mm repeatability at 1 and 10% black velvet fabric – approximately an order of magnitude greater in precision than the slide-match tolerance used by most industrial SLAM stacks. That’s the excess bit of precision needed to help keep localization stable in the presence of pedestrians, hand trucks, and swing-arm forklifts.

What Makes SLAM Navigation More Flexible Than Reflector-Based Laser Guidance?

Reflector-based laser guidance is the older, most precise: an AGV rotates a laser, measures the three+ angles to a set of installed retroreflectors, and stereolocates itself within 1 mm to 5 mm. Natural navigation is usually less precise—roughly 20 mm in a denselymapped, indoor environment based on what the industry and the MDPI 2024 AGV navigation research— but it beats on deployment time, retrofit ease, and endurance against environment shifts. A reflector installation demands line-of-sight to several reference targets from every routed position, survey-grade reflector placement, and periodic washing of the optical targets. A natural-navigation suite only requires a map— one the bot can generate in a single training run. When a warehouse re-racks, you upgrade the map; you do not rebuild a infrastructure network. For fleets that grow and evolve, that single factor is often what drives purchasing decision to SLAM instead of triangulation.

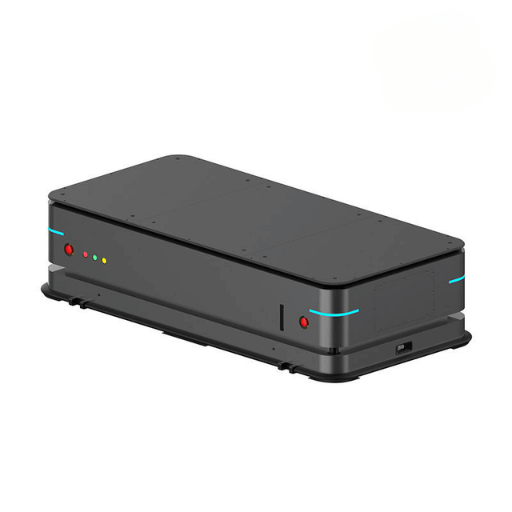

AGV Navigation Methods Compared: A 7-Dimension Decision Matrix

Engineers choosing between navigation methods often read about one solution in isolation and then try to compare it against another paragraph from a unrelated paper. The table below distills five mainstream AGV navigation methods into one decision matrix, scored on the seven dimensions that truly alter the total cost of ownership.

Read the matrix by asking which drawbacks you are able to accept. A high-volume, fixed-route beverage logistics center with unchanged rack configuration is an ideal use for wire guidance—the inflexibility is a feature, not a flaw. A contract manufacturer with recurring production cell changes can ill afford to recut floor channels or move reflectors, and natural navigation invariably prevails on total cost of ownership. Unlike an autonomous car system for public roads, an indoor AGV must detect subtle changes in coverage light levels. Vision-powered SLAM exhibits the lowest hardware bill of materials but folds under direct sunlight and deteriorates accuracy against plain surfaces such as newly-painted warehouse walls. For 2024-era deployments, lidar-powered natural navigation lies at the efficiency advantage point for 70% of industrial AGV and AMR fleets.

Key Specs to Evaluate: What Actually Matters on the Datasheet

A positioning lidar datasheet shows a dozen specs, but four of them count in real-world performance: detection range, angular accuracy, scan frequency, and lighting resistance. The table below compares the characteristics of QJKH’s YB27 high-performance sibling—the H series engineered for intense industrial missions—and an industry-proximate mid-tier 2D industrial lidar.

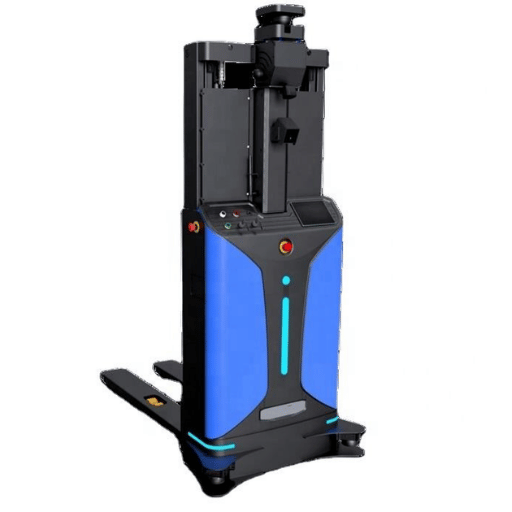

Forklift & Heavy Vehicle Applications: Long-Range Outdoor Navigation

Autonomous forklifts and reach trucks are the toughest use-case for a positioning LiDAR. The machines travel faster than an average AMR, so the sensor needs to see farther ahead; they operate outdoors as often as they do indoors, so the sensor needs to be resistant to direct sunlight; and they relocate pallets and loose loads, so the sensor needs to see bumps, vibrations and temperature swings during a 12-hour shift.

Imagine a 12,000 sq ft outdoor logistics yard where a fleet of autonomous reach trucks unload inbound trailers and stage pallets for pickers in the warehouse. At two m/s of forward velocity and a three second response time in the event of a hard stop, the vehicle needs a minimum of six meters of standoff from the obstacle and additional margin for path-correction to reach a delivery target, a square 30 m in front of it. A 15 m indoor LiDAR cannot provide that margin. The long-range outdoor positioning LiDAR configuration most yards deploy is the YB27-40HE – a 40 m detection range, 0.1 angular resolution, Ethernet UDP output and the 100,000 lux immunity that remains immune to noon sunlight.

Can a Single LiDAR Cover Both Indoor Warehouse and Outdoor Yard Operations?

Absolutely – if you buy the sensor keeping that environment in mind. A positioning LiDAR that is rated to survive under 100,000 lux ambient light, from -10 C to +50 C operating temperature, and the IP65 ingress protection spec will work inside without any fiddling because its set of operating conditions is a super-set of the indoor specs. Ordering one outdoor-rated unit instead of two different indoor and outdoor ones makes life easier for maintenance, warehousing and operators, and reduces the fleet BOM. It isn’t more expensive if the QTY is high enough, and the bonus can be delivered on day one.

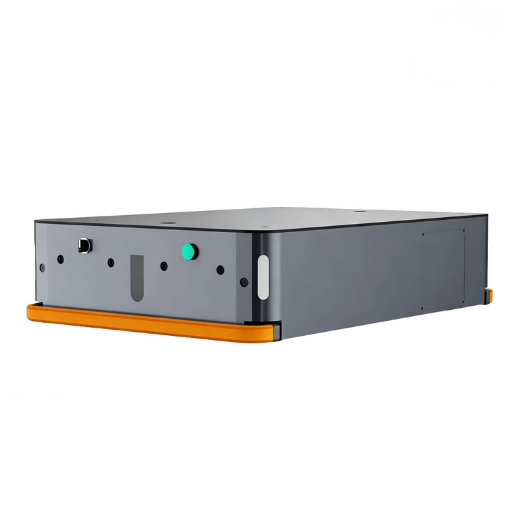

Indoor AGV & AMR: Warehouse and Manufacturing Deployments

Indoor AGV and AMR fleets are the fastest-expanding part of the mobile robot industry, and the requirements for the positioning LiDAR are in some ways different from the outdoor forklift case. Indoor vehicles move at between 1 m/s and 1.5 m/s, work in tight aisles, share the floor with humans and other robots, and must be able to call upon accurate obstacle detection at any time.

During a typical indoor deployment, the sensor is commanded over Ethernet UDP to publish navigation data to the SLAM stack and a discrete obstacle-avoidance output signal over PNP to the vehicle motion controller. The QJKH YB27-25HD satisfies this use case with a 25 m detection range, 0.1 resolution capable of good feature extraction for localization, 0.3 resolution for obstacle work, and 16 pre-programmed zone groups that the vehicle can toggle between using four out-of-band external inputs – handy when going between wide open aisles and tightly parked docking stations and many a driver will check a box to grab the one that makes changing states of the operating enviroment easier.

Engineering Note — Dynamic Zone Switching Response Time

The YB27 family ships with a configurable response time that trades speed for dependability. At the fastest setting, a 2-scan mode triggers an output transition in about 67 ms – fast enough to react to a worker stepping off a pallet jack at walking pace. At the most conservative setting, a 16-scan mode waits 536 ms before triggering, which prevents most false stops caused by brief optical transients like glare from a laminated floor. The typical deployment will sit in the 2- to 4-scan band because it’s a good compromise of reaction speed vs false-stop rate.

A very common up-front mistake is to treat obstacle avoidance and navigation as a single problem. They may use the same point cloud but run on different clocks: navigation needs high-fidelity data a few times per second, obstacle avoidance only needs a coarse binary about 25 times per second. The dual-output navigation LiDAR models are optimized for this application because they will kill two birds with one $purchase here,they eliminate the costs of two sensors and cut the challenges of synchronising multiple sensors out of the dock.

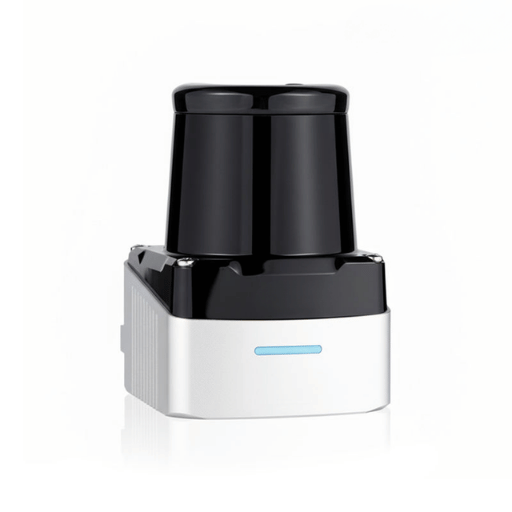

Selecting a Positioning LiDAR: An 8-Point Checklist

Before you request a quote, walk through these eight questions. Each translates directly to a line item on any legit datasheet, each has a clear answer that will hold up under procurement review.

1. 2D or 3D lidar? 2D is good for almost 80% of AGV and AMR use cases because the plane it scans can usually do enough to localize on wall edges. Get 3D only when scanned overhead obstacles, multi-level mezzanines, or cluttered ceiling layouts dictate robots reason in vertical as well as horizontal dimensions. The fact that the price and processing resource costs for 3D are tangible is also true – do not buy it unless it needs it.
2. Detection range essentials. 15 to 25 m for tight indoor aisles, 25 to 35 m for open warehouses with wide racks, and 40 m or greater for outdoor yards and autonomous forklifts. Not enough and the vehicle gets phantom stops near the edge of the field; too much and you’re wasting resolution where it is most needed.
3. Angular resolution. 0.1 is the incumbent for navigation stacks that need precise feature extraction. 0.3 is plenty fine for obstacle avoidance because you only need to be reliably told that there’s something in the zone, not accurately located in free space.
4. Scan rate. 20 to 25 Hz is acceptable for sub-2 m/s vehicles. Jump to 40 or 50 Hz if the AMR will approach 4 m/s, and verify the rate is constant through the entire field of view – some sensors advertise a peak scan rate that is only sustained at a lower angular resolution.
5. Ambient light immunity. This is the single most often ignored specification in fleet procurement. Request 100k lux for outdoor or dock-facing routes, 40k lux for mixed-use interior with skylights, and no less than 10k lux for any industrial deployment. Datasheets that omit this number are deliberately doing so.
6. Output interface. Ethernet UDP when the point cloud supports a ROS or SLAM system. PNP or NPN discrete outputs when the sensor is part of a more traditional PLC safety system. RS232 for legacy controllers that are incapable of UDP frame rates. Models with both interfaces mean you can consolidate the sensor family onto a single part number, tying the safety and navigation components together.
7. Dual-output functionality. A sensor publishing simultaneously an obstacle-avoidance stream and a navigation stream, eliminates one sensor from the BOM, one connector from the wiring harness, and one integration variable from the software stack. For any AGV or AMR with a payload below 2 tonnes, a dual-output lidar will likely be the best choice.
8. Safety pairing. A positioning LiDAR is not a safety device. For any vehicle operating in close proximity to people, the risk assessment will dictate a certified safety laser scanner running through the GPS misalignment near-field space – most likely an IEC 61496 Type 3 device delivering SIL 2 and PL d. The simple-to-specify integrations use a factory-matched pair from the same manufacturer, guaranteeing common power, mounting, and configuration parameters. QJKH’s YB27 series was designed specifically to be paired with the type 3 safety laser scanner from the same series, removing the inter-vendor integration hazard that sinking-builds have.

Frequently Asked Questions

Is a positioning LiDAR the same as a safety laser scanner?

View Answer

No. Positioning LiDARs are optimized for navigation data quality; they are unproven to IEC 61496 to undertake safety functions and cannot perform a safety task. Pair with a certified safety laser scanner.

Can 2D LiDAR handle natural navigation, or do I need 3D?

View Answer

2D LiDAR is quite capable of providing natural navigation to around 80% of AGV and AMR applications. The horizontal scan plane provides sufficient wall, column and rack geometry to extract SLAM features and compute a pose estimate, while the 2D point cloud is small enough to reliably be processed in real-time on low-power embedded hardware. 3D LiDAR is only required when the natural environment includes multi-level mezzanines, overhead conveyor blockage, low-hanging ducts not captured by a 2D sensor, or terrain elevation changes outdoor. For a standard warehouse with flat floor, obvious aisle boundaries, 2D is significantly less expensive and so much more reliable that splurging on 3D rarely makes the business case.

What detection range do indoor AGVs vs outdoor forklifts need?

View Answer

Standard 1 to 1.5 m/s indoor AGV and AMR routes with narrow aisles are accommodated with 15 to 25 m detection range. Outdoor autonomous forklifts and reach trucks require 35 to 40 m or greater because the braking distance increases with the vehicle speed and longer outdoor routes will have one or more open-air transition zones.

Does LiDAR navigation work when shelves and racks move?

View Answer

Yes, within limits. Advanced SLAM stacks now separately classify static and dynamic features and add them to the location estimate with different coefficients, so small locations changes and re-aisle reshuffles will not result in the system losing traction. Larger changes (reaming an entire aisle, relocating OEE equipment, re-piling a big storage module) will require a quick remap run where the co-operating vehicle drives the altered area once with the operator in manual control. The update only takes a few minutes which explains in part why natural navigation is displacing reflector triangulation in fleets that reconfigure more than twice a year.

Can one LiDAR serve both navigation and obstacle avoidance?

View Answer

Yes – dual-output LiDAR sensors can publish a navigation point cloud and a separate obstacle avoidance signal from the same scan, reducing hardware and wiring complexity.
