Waterproof Safety Light Curtain: The Engineer’s Guide to IP Ratings, Failure Modes, and Specification for Harsh Environments

A vendor-neutral technical guide for safety engineers, controls engineers, and plant managers specifying presence-sensing devices for washdown, outdoor, and aggressive industrial environments.

A waterproof safety light curtain is not simply a safety light curtain with a better gasket. It is an entirely different class of engineering—the equipment is rated, tested, and certified to withstand continuous exposure to pressurized water, particulates, chemicals, and thermal cycling. To specify one correctly, you need to understand three standards simultaneously:(1) IEC 61496-1 (for equipment classification by ESPE),(2) IEC 60529 (for ingress protection),(3) ISO 13849-1 (for performance level), then you need to be able to match these standards to your process reality. This guide walks through just that—from why a standard safety light curtain fails in washdown environments, to how the IP69K test is actually performed, to a 10-step specification checklist you can print and take with you.

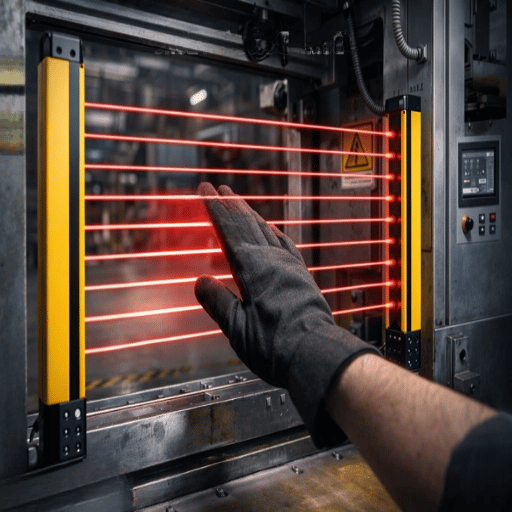

Why Standard Safety Light Curtains Fail in Washdown and Harsh Environments

Place a standard safety light curtain—the kind rated IP54 or IP65 that ships on most general-industrial machinery—in an everyday washdown environment, and one of five things will tend to happen within the first 6-12 months. Dramatic failures are infrequent, and results tend more often toward slow degradation that, from a line manager’s perspective, appears to be, “that sensor is flaky.”

That flakiness comes at a steep cost. According to Siemens’ 2024 True Cost of Downtime report, the unplanned downtime costs for the 500 largest companies around the world is US$1.4 trillion per year—approximately 11% of annual revenue. This is an increase from the US$864 billion recorded in 2019-2020. General manufacturing averages around USD 125,000 per hour of unplanned downtime—that is— idle time not associated with scheduling. Of that, 42% stems from equipment failure. A flaky safety light curtain that nuisance-trips twice every shift isn’t a rounding error on the P&L.

Five failure modes recur within wet, chemical, or outdoor environments:

• Lens fogging or condensation—thermal cycling near oven exits or refrigerator dock doors pulls moist air into the transmitter/receiver housing through gaskets never tested for vapor-phase ingress.
• Corroded connectors—M12 cordsets rated IP67 survive outdoor rain but not a daily caustic cleaning agent pass at 60 bar.
• Beam drift caused by bracket distortion—aluminum mounting brackets expand with thermal cycling, and after 90 days of hot-water washdown the transmitter and receiver are no longer collinear.
• Fouling of surfaces—oil film, product residue, or sawdust on the lens scatters the infrared beam and triggers nuisance stops. Industry practitioners frequently report surface contamination as the single most common field-service call on light curtains.
• Stealth sensor degradation—the worst mode. An ingress event reduces optical transmission enough that the self-test passes but the detection margin has disappeared. The curtain appears healthy and will miss a real intrusion.

That fifth mode is why this is a safety consideration, not just a maintenance issue. Any waterproof safety light curtain rated IP67 or IP69K is not an optional upgrade; it is the engineering response to a process environment where a standard unit will drift out of specification between scheduled inspections.

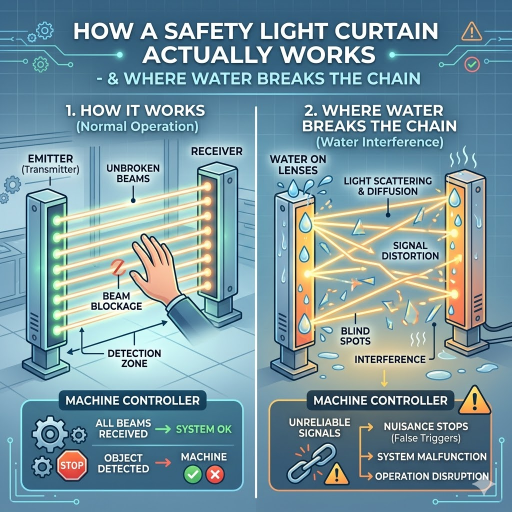

How a Safety Light Curtain Actually Works — and Where Water Breaks the Chain

Every safety light curtain is an opto-electronic Electro-Sensitive Protective Equipment (ESPE) device that projects a parallel series of modulated infrared beams between a transmitter and a receiver, if any beam is interrupted then dual-channel OSSD safety outputs switch to the OFF state within the rated response time. The downstream safety relay or safety PLC sees the switch off command and stops the dangerous motion.

That’s that one sentence because water can break the chain four places, and understanding four is the foundation of every later specification decision.

The Optical Chain, End to End

The transmitter LED provides modulated infrared radiation; it propagates through a plastic lens; it crosses the detection zone; a second lens on the receiver side focuses the light onto a photodiode. The photodiode signal is compared against the expected modulation signature. Each beam is tested dozens of times per second to ensure the beam’s integrity. Resolution – the minimum intrusion the curtain can detect – is the same as beam spacing: 14 mm for finger detection, 25 mm for hand, 40 mm for body. Beam count and protective height equal resolution times number of beams.

Where Water, Vapor, and Dust Attack

Four physical penetration points are most common: (1) gasket interfaces where humidity aerosols are drawn in during thermal contraction cycles; (2) lens surfaces where fouling cloud beams and shroud edges; (3) M12 connector threads corroding and hindering the 24 V supply; (4) circuit boards where condensing water creates shunt paths that gradually change the detection threshold. Waterproof enclosure solves all four with hermetic sealing, hydrophobic lens coatings, washdown rated connectors, and internal desiccant or positive-pressure air (if needed) to effect a long-term solution to water ingress.

Response time – the time between the moment a beam is interrupted and the switch of the OSSD safety outputs – is mostly 10-30 milliseconds on IEC 61496-1 Type 4 devices and is the T term in the ISO 13855 safety distance equation to follow. Through temperature, voltage fluctuation, and misadjustment, this number may vary; the use of a certified data sheet value is the only way to make safe safety distance calculation.

IP Ratings Decoded — IEC 60529 for Safety Light Curtains

The IP code is the two characters after “IP”: the first digit (0-6) indicates the degree of protection against solid objects, and the second character (0-9K) indicates the degree of protection against water. An IP67 safety light curtain means “dust-tight and protected against temporary immersion”. IP69K indicates “dust-tight and protected against close-range, high-pressure, high-temperature water jets”. These two ratings are not on the same continuum; IP69K does not substitute for IP67 with most standards and applications.

The IP Matrix for Safety Light Curtains

The IP69K row on that table remains important on specification of a safety light curtain into a food-process or pharma washdown application. An IP67 unit will generally survive the occasional high-powered water blast, but will not make the grade on an EHEDG prescriptive daily clean-in-place cycle where 90 bar of 90° hot caustic shots are hoisted 100 mm away from a joined part. Specification engineers who use IP67 inadvertently or in error in a CIP environment generally find themselves writedown prone by month three.

Practical Trade-Offs: IP67 vs IP69K

An example application of IP67/IP69K classification within a worked safety light curtain product line is QJKH’s IP67/IP69K waterproof safety light curtain product line.

Type 2 vs Type 4 — Safety Category Selection for Waterproof Models

Waterproofing and ESPE Type are independent axes. A Type 2 curtain in an IP69K housing is still Type 2, and I P69K ingress rating tells you nothing about the safety-integrity architecture. Correctly differentiating these is what saves you from a million-dollar audit finding where the risk assessment required PLe but the newly installed safety light curtain was in an IP69K enclosure tops out at PLd.

Classification is provided by IEC 61496-1. Quick version: Type 2 devices perform a periodic self-test, meaning that a fault could be present but undetected between some tests; Type 4 devices perform continuous self-test with high fault tolerance. That architectural distinction maps to the performance levels outlined in ISO 13849-1.

Which Type to specify is a consequence of performing a risk assessment according to ISO 12100. When the output of that analysis specifies the needed Performance Level, the type of safety light curtain required to achieve that PL becomes a limitation, not a choice. Buying a machine and designating Type 2 based on what type was previously installed and hoping that none of the environmental hazards have changed will provide inadequate architecture. The CE or OSHA auditor will identify the dissonance between the safety assessment and the installed architecture; that disconnect should have been identified during the risk assessment.

A 10-Step Specification Checklist for Waterproof Safety Light Curtains

This checklist is organized intentionally. Steps 1-3 define what is permitted to be purchased. Steps 4-7 identify which from the permitted configurations are appropriate to the environment. Steps 8-10 establish compliance at the startup inspection and audit.

For a worked example with full specification sheets, certified response times, and IP test documentation, see QJKH’s waterproof safety light curtain product page.

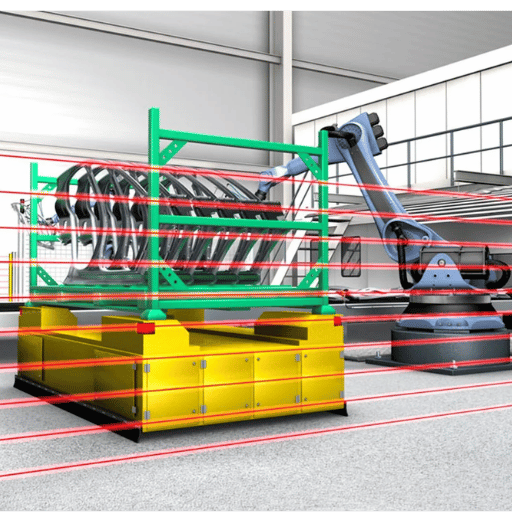

Installation Realities — Mounting, Wiring, and Alignment in Harsh Environments

An IP69K waterproof safety light curtain is only as waterproof as it’s weakest mounted interface. Of the five factors independently found by industry to cause 80% of false trips and failed installed safety light curtains in wet environments; positioning, ambient light, false activation, things that go bump, and electrical noise; installation issues account for the largest share.

There are five realities that make or break a three-year installation vs. a three-month re-working.

Bracket material selection matters more than most people assume. Expect a 316-grade stainless bracket to cost 2-3 X what a 304, which costs twice what aluminum does, but in a caustic wash environment 304 will have begun pitting within a year and aluminum will have begun galvanic corrosion where it is in contact with a stainless fastener.

Weld spatter from a nearby welding robot can make both failure modes progressively worse. Budget the bracket right first time.

Cable path breaks enclosure rating.

Treat a waterproof safety light curtain as a system, not as a part. Using a standard IP67 M12 cordset 1 m downstream downstream in the system the IP68 rating comes from the light curtain only. Washdown rated M12 connectors, appropriately rated cable glands, and chemically compatible cable jackets need to be called out along with the light curtain.

Mounting alignment deviation is only a mounting problem. Typical manufacturing tolerances are measured at time of install. Thermal cycling, machine vibration, and shock loads from nearby equipment can transition the transmitter and receiver over time.

Using a mounting plate 2-3 times the minimum specification is justified for high-vibration applications. Several Type 4 light curtains have built in alignment assistance indicators; in high-vibration or otherwise harsh environments they are not a feature they are a maintenance asset.

Thermal cycling results in condensation even in IP69K enclosures. Curtains mounted adjacent to a refrigerator dock door, an oven discharge, or outdoors will cycle 20-40°C/day. Air inside the enclosure expands and contracts; if the gasket is marginal, humid atmosphere is ingested and condenses when it cools. Adding a positive-pressure purge line (~0.5-1 bar dry instrument air) to the enclosure is a cost-effective insurance policy for severe thermal environments.

Interlock and wiring gaffes appear in the first inspection phase. OSSD safety outputs must be wired into a safety-rated input, not a standard PLC input. Forcing or bypassing the interlock during commissioning “just to complete the test” and leaving it in bypass mode is a textbook Loss of Function anomaly. Document the wiring, document the separation of conductors at the category appropriate stage, and take a photograph of the complete installation for the conformity file.

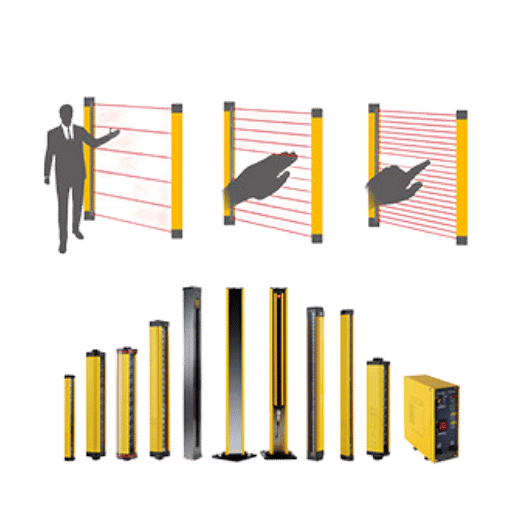

Compliance and Certification — What Auditors Actually Check

Three levels of conformity are present for a waterproof safety light curtain: the device (certified to IEC 61496-1/-2 for ESPE Type as well as IEC 60529 for IP rating), the safety function (certified to ISO 13849-1 at the required Performance Level), and the machine-installation (conforming to regional regulation-OSHA in the US, Machinery Directive in the EU, CSA Z432 in Canada). Missing documentation at any level is an inspection anomaly.

One recurring inspection observation on waterproof conditions: the datasheet claims IP69K, the purchase order references IP69K, but the file contains no IEC 60529 test report. That supplier is required to submit a copy to the customer if asked to do so. If they cannot provide it, then the bulk of the specification is indefensible.

Common Specification Mistakes Engineers Make

Seven errors recur in specifications for waterproof safety light curtain installations. They manifest at inspection, commissioning, or six months into operation.

1. Specifying by IP rating alone. IP69K grades water infiltration resistance. It offers no insight as to chemical compatibility. Caustic CIP cycles can dissolve lens coatings that survived the IP test no problem.
2. Carrying forward “Type 2 was functional previously”. New installation, new risk assessment. Previous machines’ Performance Level does not carry over.
3. Retrofitting a standard curtain into a waterproof enclosure without a system test. The enclosure may be IP69K, but the combined assembly has not been validated as a system.
4. Using marketing-brochure response times in the safety distance calculation. Only the certified datasheet value is defensible.
5. Disregarding the cable-side rating. System IP rating is only as strong as its weakest link, not as strong as the curtain manufacturer’s nameplate.
6. Bypassing the annual function test. Regulation mandates periodic validation; no documentation is an inspection defect.
7. Specifying as one-time-use without cross-checking required life cycle inputs. Resupply cordsets, mounting clamps, and calibration tools need to be present for the typical 7-10 year life of the installation. An orphaned proprietary connector is an expensive “gotcha”.
