Type 4 Safety Light Curtain: Selection & Standards Guide

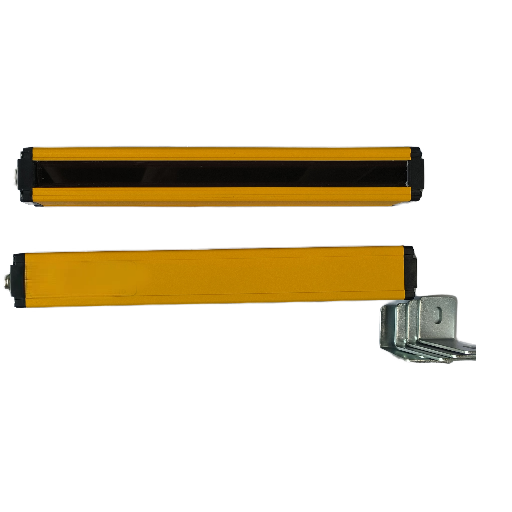

Type 4 Safety Light Curtain Guide: Standards, Selection & Integration
Type 4 is a functional-safety classification for active opto-electronic protective devices, but selecting a Type 4 safety light curtain requires more than choosing the highest device type. Detection capability, machine risk, safety distance and the complete safety function all need to work together.
In this guide:
what Type 4 means under the IEC 61496 framework, how it relates to
machine safety performance, how 14, 25 and 45 mm detection resolution
affects selection, and how ISO 13855:2024 influences safeguard
positioning.
02 · Understanding Type 4
What Does “Type 4” Actually Mean?
Type 4 describes the functional-safety characteristics of an active opto-electronic protective device. It does not describe the size of the light curtain, its sensing distance, its resolution, or the overall safety performance of the machine.
Safety light curtains are commonly classified under the IEC 61496 framework for electro-sensitive protective equipment. Within that framework, Type 4 devices are designed to meet more demanding requirements for fault detection, diagnostic behavior and resistance to dangerous failure than lower device Types.
In practical terms, this means a Type 4 safety light curtain is designed so that faults relevant to the protective function are detected with a high level of reliability. In practical terms, Type 4 devices incorporate diagnostic measures intended to detect safety-relevant faults so that such faults do not silently defeat the protective function.
Type 4 Is a Device Classification — Not a Complete Machine Rating
One of the most common misunderstandings is to treat Type 4, Category 4, PL e and SIL 3 as interchangeable labels. They are related concepts used in functional-safety engineering, but they describe different parts of the safety problem.
The light curtain has its own device classification. The complete safety function also includes the safety-related control system, machine stopping behavior, output devices, wiring, diagnostic coverage and the way the safeguard is positioned around the hazard.
Type 4 Also Does Not Determine Resolution
A Type 4 safety light curtain may use different detection resolutions. For example, the current CCH ENT platform includes 14, 25 and 45 mm options. These resolutions address different detection requirements, but all belong to the same Type 4 product family.
Resolution, safety distance and device Type therefore need to be selected together rather than treated as the same specification. We cover the resolution question later in this guide.
Engineering Note
“Type 4” should answer one question: what safety-device classification
does the protective device meet?
It should not be used by itself to decide the required resolution, installation distance or final machine performance level. Those decisions come from the machine risk assessment and the complete safety-function design.
If you are deciding whether a machine requires Type 2 or Type 4, see our Type 2 vs Type 4 risk-based selection guide rather than choosing only from the product label.
03 · Standards Framework
The Standards Behind a Type 4 Safety Light Curtain
No single standard answers every machine-safety question. IEC 61496 defines the protective-device requirements, while other standards address the safety-related control system and the positioning of the safeguard.
For a Type 4 safety light curtain, the most important distinction is between the standard that defines the protective device and the standards used to design the complete safety function. Mixing these roles is one reason terms such as Type 4, PL e and safety distance are sometimes incorrectly treated as if they describe the same thing.
| Standard | Primary Role | Why It Matters Here |
|---|---|---|
| IEC 61496-1:2020 | General requirements and tests for electro-sensitive protective equipment (ESPE). | Provides the general framework for safety-related performance, design and testing of the protective equipment. |
| IEC 61496-2:2020 | Particular requirements for active opto-electronic protective devices (AOPDs). | Applies specifically to the sensing technology used by conventional safety light curtains. |
| ISO 13849-1:2023 | Design and integration of safety-related parts of control systems. | Provides the methodology used when evaluating the performance of the complete safety-related control function, including PL. |
| ISO 13855:2024 | Positioning and dimensioning of safeguards relative to human approach. | Used when determining how far a protective device should be positioned from the hazardous area for the applicable approach. |
IEC 61496 Does Not Determine the Final Safety Distance
IEC 61496 establishes requirements for the electro-sensitive protective equipment itself. It does not by itself determine where the light curtain must be installed on a particular machine.
Safeguard positioning requires additional information about how a person can approach the hazard, how quickly the machine can stop, and how the complete safety function responds. This is where standards such as ISO 13855 become relevant.
PL e Is Also Not Another Name for Type 4
ISO 13849-1 addresses the safety-related parts of the control system. A Type 4 light curtain can be used within safety functions requiring high performance, but the final achieved Performance Level depends on the complete architecture and not on the light curtain label alone.
Engineering Note
Think of the standards as layers rather than interchangeable ratings.
IEC 61496 addresses the protective device, ISO 13849-1 addresses safety-related control-system design, and ISO 13855 addresses safeguard positioning. A compliant machine safety function may need all of these considerations working together.
04 · The Complete Safety Function
How a Safety Light Curtain Fits Into the Safety Function
A safety light curtain detects interruption of its protective field, but it does not stop hazardous machine motion by itself.
When an object interrupts the protective field, the safety light curtain changes the state of its safety outputs. These OSSD signals are then evaluated by an appropriate safety-related control system, which initiates the required machine response.
The effectiveness of the safeguard therefore depends not only on the light curtain, but also on how quickly the complete system reacts and how long the hazardous machine motion takes to reach the required safe state.
01
Protective Field Interrupted
A person, body part or other detectable object enters the active
sensing field.
02
OSSD State Changes
The safety light curtain provides the corresponding safety-related
output state to the connected control system.
03
Safety Control Responds
The safety-related control architecture processes the signal and
commands the required machine safety response.
04
Hazardous Motion Reaches a Safe State
The machine must reach the required safe condition before a person
can reach the hazardous area.
Why This Matters for Type 4 Selection
A Type 4 device provides a high-performance protective-device architecture, but the Type classification alone cannot compensate for an unsuitable control system, excessive stopping time or incorrect safeguard positioning.
This is also why safety distance must be calculated using the response time of the selected protective device together with the stopping performance of the complete machine safety function.
Engineering Note
The light curtain detects. The complete safety function brings the
machine to the required safe state.
Device Type, control-system architecture, stopping performance and safeguard position must therefore be evaluated together rather than treated as independent specifications.
05 · Detection Capability
Safety Light Curtain Resolution: 14, 25 and 45 mm
Resolution describes the minimum object size the safety light curtain is designed to detect. It is one of the most important selection parameters because it affects what can be detected and can influence how the safeguard is positioned relative to the hazard.
A finer resolution can detect smaller objects within the protective field. This is why lower numerical values are commonly associated with finger-oriented safeguarding, while larger values may be used where hand or access-oriented detection is appropriate.
However, resolution should not be interpreted as a safety level. A 14 mm Type 4 safety light curtain and a 45 mm Type 4 safety light curtain can both belong to the same Type 4 device family while serving different detection requirements.
| Resolution | Typical Direction | Selection Consideration |
|---|---|---|
| 14 mm | Fine / finger-oriented detection | Used where smaller-object detection is required, often closer to a hazardous point of operation when the overall safeguarding design permits. |
| 25 mm | Hand-oriented detection | A common medium-resolution choice for machine guarding where the required detection capability and safety distance can both be satisfied. |
| 45 mm | Access-oriented / larger-object detection | Considered where the safeguarding concept permits a larger minimum detectable object size and the approach geometry is appropriately controlled. |
Why Resolution Affects Safety-Distance Evaluation
Safeguard positioning is not determined only by machine stopping time. Detection capability also matters because the selected resolution influences how far a person may penetrate toward the hazard before the protective device detects the approach.
This is one reason a safety-distance value should never be copied from another machine simply because the two machines use light curtains with the same protection height or similar physical dimensions.
Resolution and Protection Height Are Different Specifications

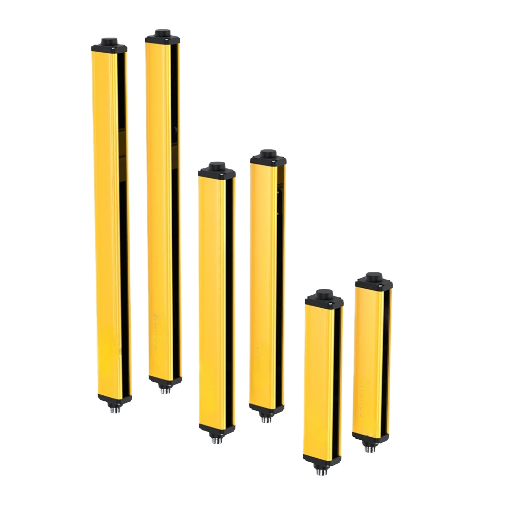

Resolution describes the detectable object size. Protection height describes the vertical or active extent of the sensing field. A taller light curtain does not automatically provide finer detection, and a finer-resolution light curtain does not automatically provide a taller protective field.
For example, the current CCH ENT Type 4 family uses 14, 25 and 45 mm resolution platforms with model-dependent protection heights and response times. The complete model therefore needs to be selected rather than choosing from resolution alone.
Engineering Note
Choose resolution from what must be detected — not from the assumption
that the smallest number is automatically the best choice.
Detection capability, machine geometry, protection height, response time and safety distance should be evaluated together. For current CCH model specifications, see the ENT Type 4 safety light curtain product page .
06 · Safeguard Positioning
Safety Distance and ISO 13855:2024
Even the correct Type 4 safety light curtain will not provide effective protection if it is installed too close to the hazard. Safety distance is intended to provide enough separation for the safety function to act before a person can reach the dangerous area.
ISO 13855:2024 addresses the positioning and dimensioning of safeguards with respect to the approach of the human body. For a safety light curtain, the required distance depends on more than the response time printed in the product datasheet.
The calculation must consider the complete response of the safety function: detection by the protective device, signal processing in the safety-related control system, and the time required for hazardous machine motion to reach the required safe state.
Approach
How a person can move toward, reach through, reach over or otherwise
approach the hazardous area affects safeguard positioning.
Detection Capability
Light curtain resolution influences how early an approaching body
part can be detected and may affect the applicable additional
distance considerations.
Device Response Time
Use the actual response time of the selected light curtain model,
not the fastest value from the product family.
Control & Stop Time
The safety control system and machine require additional time to
process the signal and bring hazardous motion to the required
safe state.
Why the Same Light Curtain Can Require Different Distances
Two machines may use exactly the same Type 4 safety light curtain and still require different safeguard positions. One machine may stop quickly, while another has greater mechanical inertia or a longer control-system response.
Machine geometry can also change the result. A vertical approach to a point of operation is not automatically evaluated in the same way as an installation where a person may reach over or around the protective field.
Use the Actual ENT Model Response Time
Within the CCH ENT family, response time varies with the selected resolution, protection height and model configuration. The final safety-distance evaluation should therefore be made only after the exact model has been selected.
Practical Principle
Safety distance is a property of the machine application — not a fixed
number supplied with the light curtain.
Product response time is one input. Machine stopping performance, approach conditions and the complete safeguarding arrangement are also part of the engineering decision.
Engineering Tool
Calculate the distance for the actual machine.
Use our ISO 13855:2024 Safety Distance Calculator as an engineering aid, using the selected device data and actual machine stopping information. Final positioning still requires machine-specific risk assessment and validation.
07 · Selecting the Protective Device
When Is a Type 4 Safety Light Curtain Appropriate?
Type 4 is often considered where a machine safety function requires a high level of protective-device performance, but the correct decision starts with the machine risk assessment rather than with the product label.
A safety light curtain should be selected only after the hazard, foreseeable access and required risk reduction have been understood. The designer can then determine whether an opto-electronic protective device is appropriate and what device classification is required.
In some applications, a Type 4 safety light curtain may be an appropriate part of the safeguarding concept. In others, a different protective device, physical guarding, interlocking, a safety laser scanner, or a combination of measures may better address the actual hazard and access pattern.
01
Assess the Hazard
Identify the hazardous motion, severity of harm, exposure and
foreseeable ways a person can reach the danger zone.
02
Define the Safety Function
Determine what the safeguarding system must detect and what safe
machine response must follow when access occurs.
03
Select the Device Type
Choose the protective-device classification that supports the
required safety function and applicable machine-safety requirements.
04
Select Detection Capability
Choose resolution and protective-field dimensions according to what
must be detected and how a person can approach the hazard.
05
Position and Validate
Determine the required safety distance, integrate the device into the
safety-related control system and validate the final safeguarding
arrangement.
Type 4 Does Not Automatically Mean “Best” for Every Application
Selecting the highest available device Type without considering the actual machine does not replace engineering analysis. The protective device must match the required safety function, detection requirement, installation geometry and machine stopping performance.
The same principle applies in the opposite direction: a lower device Type should not be selected simply because the machine appears simple or because the installation cost is lower. The required performance must come from the risk assessment and applicable standards.
Safety Light Curtain or Safety Laser Scanner?
Safety light curtains are particularly effective for defined openings and linear protective fields. A safety laser scanner may be more suitable where a two-dimensional protective area, floor-level access detection or configurable protective fields are required.
The choice should therefore be based on the geometry of the hazard and required protective function rather than on treating the two technologies as interchangeable alternatives.
Selection Principle
Start with the required safety function. Select Type 4 only when it fits
that function and the complete safeguarding design.
For a more detailed comparison of protective-device Types, read the Type 2 vs Type 4 risk-based selection guide . For current CCH Type 4 product specifications, see the ENT Type 4 safety light curtain page .
08 · FAQ & Engineering Resources

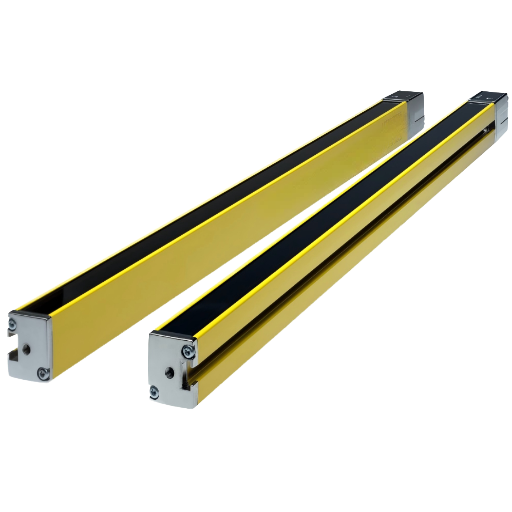

Type 4 Safety Light Curtain Guide FAQ
The questions below summarize the most important points when evaluating Type 4 safety light curtains for industrial machine safeguarding.
What is a Type 4 safety light curtain?
A Type 4 safety light curtain is an active opto-electronic protective device designed to meet Type 4 requirements within the IEC 61496 framework. The Type describes characteristics of the protective device itself and should not be treated as the overall safety rating of the machine.
Does Type 4 automatically mean Cat. 4, PL e or SIL 3?
No. Type 4, Category 4, Performance Level and SIL belong to related but different parts of functional-safety engineering. A Type 4 protective device can be used in safety functions requiring high performance, but the achieved machine-level performance depends on the complete safety-related control architecture and validation.
Should I choose 14, 25 or 45 mm safety light curtain resolution?
Choose the resolution from what must be detected and how a person can approach the hazard. Lower numerical resolutions provide finer detection capability. The selected resolution must then be evaluated together with protection height, response time and required safety distance.
Is Type 4 always required for a high-risk machine?
The required protective-device Type should come from the machine risk assessment, required safety function and applicable standards. Machine type alone should not be used as a shortcut for selecting Type 2 or Type 4. See the Type 2 vs Type 4 selection guide .
How far should a Type 4 safety light curtain be from the hazard?
There is no universal distance. Safeguard positioning depends on approach conditions, detection capability, protective-device response time, safety-control response and machine stopping performance. Use the actual machine data and the applicable ISO 13855 methodology.
Does Type 4 determine the IP protection rating?
No. Functional-safety Type and environmental ingress protection are separate product characteristics. For example, the current CCH ENT Type 4 platform has an IP65 enclosure rating, but IP65 is not part of the definition of Type 4.
Safety light curtain or safety laser scanner — which should I use?
Safety light curtains are well suited to defined openings and linear protective fields. Safety laser scanners can be more appropriate where a two-dimensional protective area or configurable protective-field geometry is needed. Selection should follow the hazard geometry and required safety function.
Standards Referenced in This Guide
IEC 61496-1:2020
General requirements and tests for electro-sensitive protective
equipment.
IEC official publication →
IEC 61496-2:2020
Particular requirements for active opto-electronic protective
devices such as safety light curtains.
IEC official publication →
ISO 13849-1:2023
Design principles for safety-related parts of control systems.
ISO official publication →
ISO 13855:2024
Positioning and dimensioning of safeguards with respect to the
approach of the human body.
ISO official publication →
